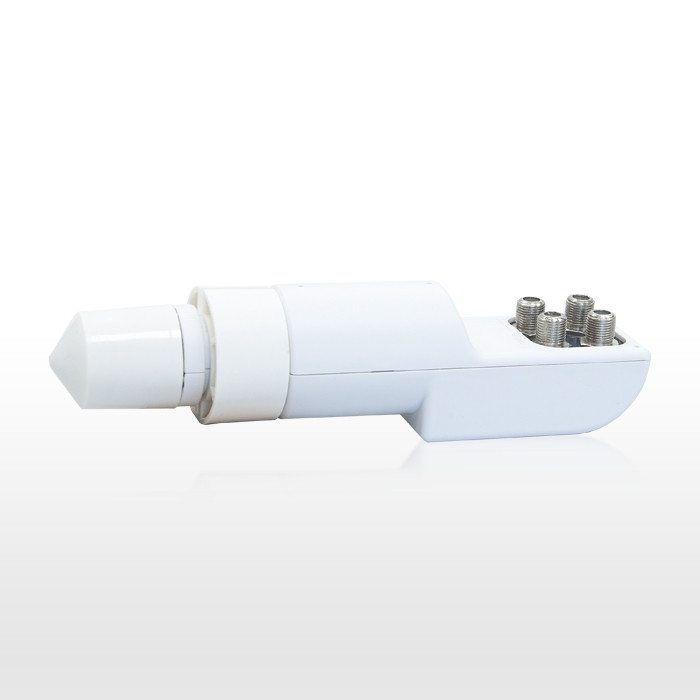

AB-COM 0.1dB Slimline Quad Output Universal LNB
£35.95
📦 Delivery from £2.99
· 1 kg — Royal Mail, Evri or InPost at checkout
⚠ Only 1 left in store
⚡ Same-day dispatch
🏪 Walk-in store — 349 Harehills Lane, Leeds, LS9 6AX
⭐ 26+ years in Leeds
Description
DISCONTINUED - ALTERNATIVES HERE
AB-COM 0.1dB QUAD OUTPUT UNIVERSAL LNB
MANUFACTURED BY INVERTO - SLIMLINE 'BULLET' DESIGN
RUBBER WEATHER BOOT & 40MM COLLAR ADAPTOR INCLUDED
HIGH PERFORMANCE FULLY DVB-S2 COMPLIANT LNB
The AB-COM 0.1dB Slimline Quad Output LNB provides outstanding low noise 0.1dB performance designed to meet strict high-quality specifications to give you optimum signal reception. This slimline design is particularly useful when mounting a number of LNB's on a single cross-arm or when used alone for a neat and tidy installation.
Comes complete with rubber weather boot and 40mm collar adaptor. Neck size 23mm without collar.
Technical Specification:
| Input Frequency (GHz) | Low Band:10.7~11.7 |
| High Band:11.7~12.75 | |
| Output Frequency (MHz) | Low Band:950~1950 |
| High Band:1100~2150 | |
| Local Oscillator Frequency (GHz) | 9.75 / 10.60 |
| Output VSWR | 2.5:1(Max.) |
| Output impedance (Ω) | 75 |
| Output Connector | F Type Female 4x |
| Local Oscillator Frequency (GHz) | 9.75 / 10.60 |
| L.O. Stability | ±1MHz@25°C |
| ±2MHz@(-40°C to +60°C) | |
| Phase Noise (offset) | -50dBc/Hz@1KHz |
| -75dBc/Hz@10KHz | |
| -100dBc/Hz@100KHz | |
| Conversion Gain (dB) | 52~65 |
| Gain Flatness | ±0.5dB/27MHz |
| 1dB Gain Compression (dBm) | 0 (Min.) |
| Noise Figure (dB) | 0.1 (Typ.) |
| Cross Pol. Isolation (dB) | 20 (Typ.) |
| Image Rejection (dB) | 45 (Min.) |
| Band Select Control (KHz) | High Band:22±4 |
| Low Band:0 | |
| Polarity Select Control | V:11.5~14V DC |
| H:16~19V DC | |
| Work Current (mA) | 190 (Typ.) |
