EMP Centauri Multiswitch 33/12 MS33/12PIU-6
Description
4 YEAR WARRANTY

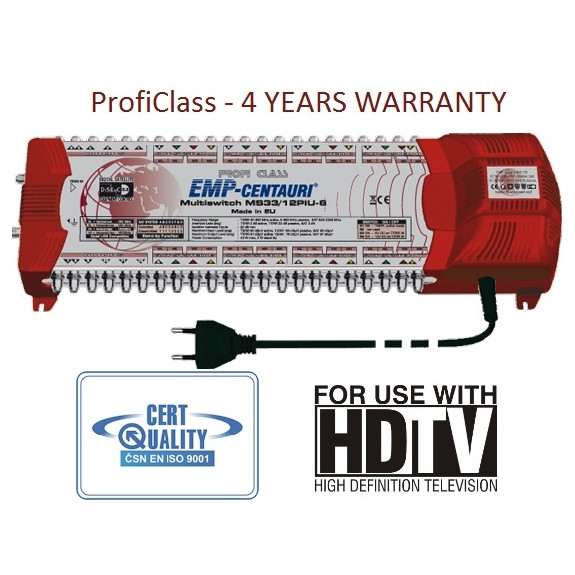

EMP CENTAURI MULTISWITCH PROFI CLASS 33/12 MS33/12PIU-6

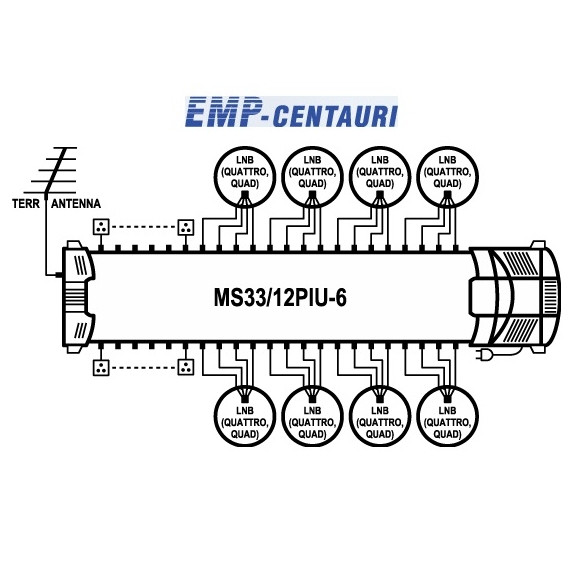

33in/12out standalone multiswitch for distribution of 32 SAT IF signals including terrestrial for up to 12 users.
TECHNICAL SPECIFICATION:
Model: MS33/12PIU-6
Frequency range:
- LNB Inputs: 950-2300 MHz
- Terr. Input: 5-862 MHz (passive) / 40-862 MHz (active)
- Outputs: 5-2300 MHz (passive) / 40-2300 MHz (active)
Control: 13/18 V + 0/22 kHz, DiSEqC 1.0, 1.1, 1.2
Insertion loss:
- Sat: 3 dB avg
- Terr active: 3 dB avg
- Terr passive: 22 dB avg
Sat Inputs Isolation: 20 dB min
Maximum Input Level*:
- Sat: 90 dB?V avg
- Terr.: 100 dB?V avg (passive) / 90 dB?V avg (active)
Maximum Output Level*:
- Sat: 87 dB?V avg
- Terr.: 78 dB?V avg (passive) / 87 dB?V avg (active)
Power Consumption:
- From each Receiver: 45 mA (18 V)
- From internal power supply: 2.1-8.5 W (passive) / 2.3-10 W (active) + LNB
Terr. Preamplifier Supply: 150 mA max
Dimensions (w,d,h): 47.0 x 15.2 x 8.7 cm (power cord length 130 cm)
Temperature Range: -30 ~ +60 °C
* Terr.: EN 50083-3/60dB IMA3 [dB?V]; SAT: EN 50083-3/35dB IMA3 [dB?V]
