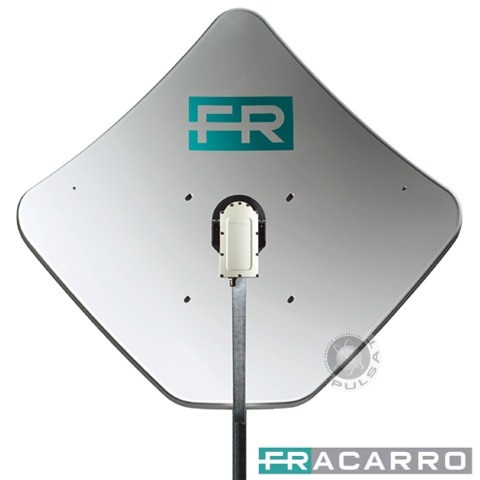

Fracarro 85cm Penta Dish Aluminium

FRACARRO PENTA 85CM HIGH GAIN DISH ALUMINIUM

High Quality Aluminium model, not steel

High Gain Fracarro Penta 85cm Dish in light grey.

FRACARRO A NAME YOU CAN TRUST
Fracarro has been producing Aerial products since 1933. Fracarro was also know as Philips Fracarro.
Fracarro Quality System being officially recognised on an international level with ISO9001 Certification.
This Certification confirms Fracarro products are highly reliable.

Technical Specifications:

- Frequency Range 10.7 -12.75 GHz
- Dimensions 775 X 775 mm
- Offset Angle 22.1 degrees
- Efficiency > 70%
- Gain at 10.95GHz 39dB
- Cross Polarisation on axis >38dB
- First Side Lobe <-34dB
- Nosie Temperature 40degrees K at 30degrees Elevation
- F/D ratio 0.7
- 3dB beam width 2.2degrees
- LNB Clamp 23-28; 40; 60 mm
- Elevation angle Maximum tilt 60degree - Base 41
- Mast clamp 35-80 mm
- Material ALUMINIUM
- Supporting Bracket Material Steel zinc treatment
- Colour Dark Grey
- Wind load at 150Km/h 81 Kg
