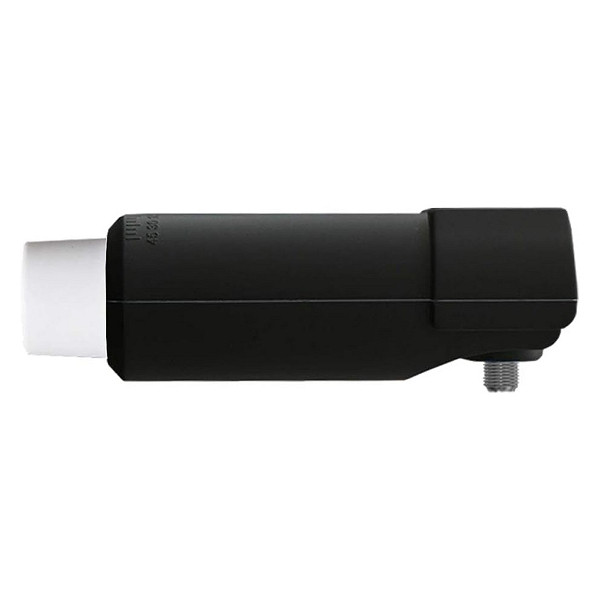

Gigablue Ultra Rocket 0.1dB Single Output Slimline LNB

GIGABLUE ULTRA ROCKET SINGLE OUTPUT SLIMLINE 0.1dB LNB

HIGH PERFORMANCE HD/4K DVB-S2 LNB

The high-quality Gigablue Rocket Single LNB has a space-saving 'bullet' ('Rocket' even) style design coupled with excellent reception quality.

HD/4K and 3D transmissions can be received without restrictions and the shape is perfect for multifeed dishes.

Complete with rubber weather boot.

Technical Specification:

Features:

• Low energy consumption
• Gold plated connectors
• Low noise figure
• Low phase noise
• High cross polarization isolation
• High frequency stability
• Weather protection housing

Technical data:

• Input frequency range: 10.70 11.70 GHz / 11.70 12.75 GHz
• Output frequency range: 950 1950 MHz / 1100 2150 MHz
• Outputs: 1 (receiver direct connection)
• LO frequency: 9.75 / 10.60 GHz
• Noise ratio 0.1 dB (typ.)
• Conversion gain: 60dB
• Feedaufnahme: 40mm
• Operating temperature -30°C ~ 60°C

Scope of delivery:

- Gigablue Ultra Rocket Single LNB
- Rubber cable boot
