Icecrypt DM200 DiSEqC Motor
£69.95
📦 Delivery from £2.99
· 3 kg — Royal Mail, Evri or InPost at checkout
✕ Out of stock — call us
⚡ Same-day dispatch
🏪 Walk-in store — 349 Harehills Lane, Leeds, LS9 6AX
⭐ 26+ years in Leeds
Description
DISCONTINUED - ALTERNATIVE HERE

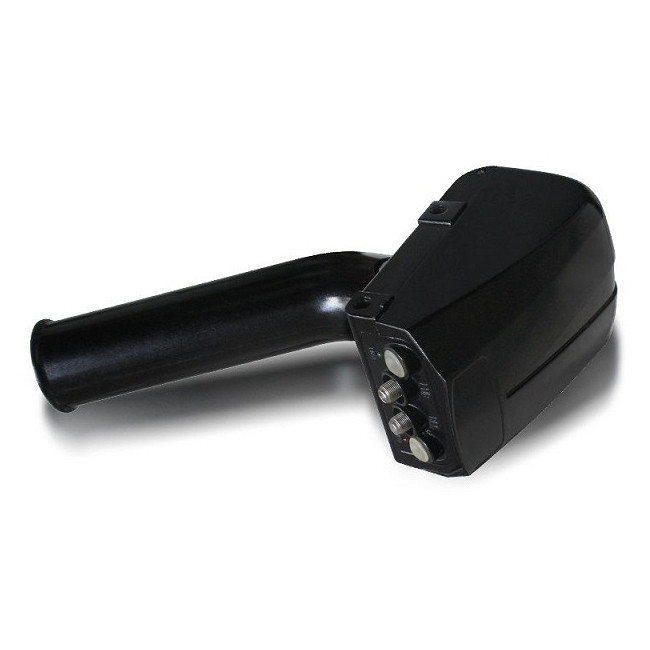

ICECRYPT DM-200 DISEQC MOTOR POSITIONER
The Icecrypt DM-200 DiSEqC motor offering superbly accurate and reliable DiSEqC dish positioning with USALS functionality.
Technical Specification:
| Protocol | DiSEqC 1.2 & Goto 'X' (DiSEqC 1.3) |
| Compatible Receiver | Set top box with DiSEqC 1.2 / 1.3 USALS |
| Antenna Size | 1.2m Max. |
| Speed | 2.5°/sec (at 13V), 3.2°/ sec (at 18V) |
| Azimuth Angle | 80°East ~ 80°West (160° total) |
| Elevation Angle | 25° ~ 75° |
| Input Voltage | 13/18Vdc |
| Output Voltage | 13/18Vdc |
| Power Consumption | 100mA (Standby) |
| 200mA (Normal) | |
| 350mA (Max.) | |
| Satellite Positions | 100 Positions |
| Calibration Function | Yes (Goto 0°) |
| Manual East/West Buttons | Yes (Built-in on the bottom of the Mount) |
| Limit Protection | 1. Fixed type with microswitches |
| 2. Programmable software limit | |
| 3. Current limit | |
| Positioning Sensor | High resolution hall effect sensor |
| Connector F-Type | F-Type |
| Weight | Mount 3.1 Kg (Net) / 3.5 Kg (Gross) |
