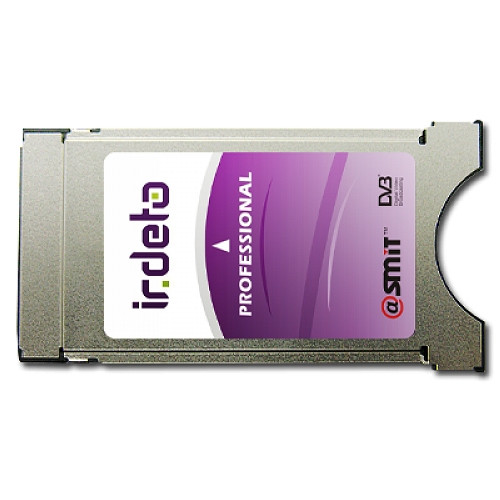

Irdeto Professional CAM (SMIT)

IRDETO PROFESSIONAL CA MODULE BY SMiT

Official Irdeto Professional CAM manufactured by SMiT for decrypting multiple encrypted services simultaneously.

Unless specified a single channel CAM will be shipped. Check one of the boxes above before clicking 'Buy Now' to order a 2, 4, 6 or 8 channel version.

Adopting ASIC chip with proprietary intellectual property right:
Embedded 32-bit CPU (ARM7TDMI)
Adopting advanced 0.18-micron technology
Advanced language development environment
Supporting subsequent development of value-added services

Descrambling: Supporting common descrambling algorithm of Europe
DVB-CI interface: Compatible with DVB-CI / PCMCIA
Smart Card interface: ISO7816

Specification:
Dimensions: PCMCIA type II
Interface protocols of the host: In full compliance with DVB-CI Profile 1 protocol;
External interface of IC card: Build-in SmartCard reader, in compliance with ISO7816 protocol;
Operating system: Embedded Linux system with proprietary intellectual property rights;
Internal descrambler: Integrated universal DVB descrambler;
MPEG DEMUX: Multi-channel SECTION and PID filter configurable through software;
Enclosure structure: Latest compact structure and design for assembly;
Descramble 1 ~ 8 TV Channels using one module
