Promax ATLAS NG DVB and ATSC3.0 Universal Broadcast Analyzer
Description
WEBSITE PRICES QUOTED INCLUSIVE OF VAT: EX-VAT PRICE £8,400.00
PROMAX ATLAS NG UNIVERSAL BROACAST ANALYZER
LATEST VERSION 'FLAGSHIP' ANALYSER FROM PROMAX!
The ATLAS NG from respected manufacturer Promax is a multipurpose NextGen TV DVB and ATSC 3.0 analyzer which includes 5G and covers the most stringent requirements for broadcast professionals. DVB-S2x, IPTV, Fiber optics, 3G-SDI, Transport stream ASI, Wi-Fi, OTT are all covered!
ATLAS NG is a broadcast spectrum analyzer capable of taking measurements up to 6 GHz covering the S and C bands, where an increasing number of technologies are all fiercely competing for bandwidth. It includes the latest broadcast technologies such as ATSC 3.0 and DVB-S2x in addition to 5G interference detection
It includes a 3G-SDI input to run a full 3G-SDI signal diagnosis, including a professional audio meter and eye diagram, and features an external SDI input for that task, other than the standard ASI input and output.
Includes an IPTV analyzer. The omnipresence of IP technology in the broadcast industry makes it compulsory for an analyzer to be capable of feeding from IPTV signals and monitor them. Therefore, it becomes essential to have at hand a tester that can monitor and picture IPTV streams.

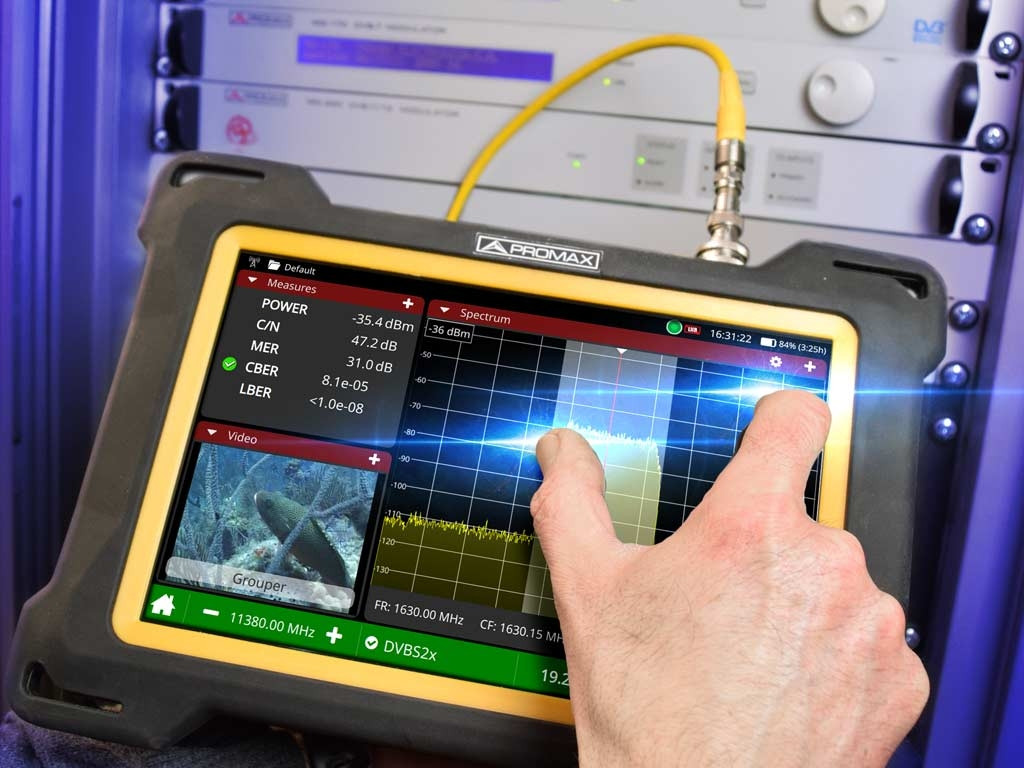

The new multitouch user interface based on customizable docking pannels ensures an improved user experience. The analyzer is easier to use than ever before!
Detailed specification available Download Datasheet
PROMAX ATLAS NG SPECIFICATION:
| BROADCAST STANDARDS | |
| Digital terrestrial TV / Radio | DVB-T, DVB-T2 (T2-base, T2-lite) |
| ISDB-T/Tb (full seg / 1seg) | |
| ATSC 1.0, ATSC 3.0, DAB, DAB+ | |
| Digital cable | DVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM |
| Digital satellite | DVB-S, DVB-S2, DVB-S2x, DSS, QPSK |
| Analogue | Analogue terrestrial, FM RDS |
| SPECTRUM ANALYZER MODE | From 5 MHz to 6 GHz |
| IPTV OPERATING MODE | Multicast/unicast streams (receive/measure/record) |
| SDI OPERATING MODE | 3 Gbps input/output. SD-SDI, HD-SDI and 3G-SDI compatible |
| It includes eye statistical diagram. | |
| WIFI ANALYZER MODE | Spectrum analyzer + WiFi dongle |
| OTT ANALYZER MODE | Supports MPEG-DASH and HLS. Codecs H.265, H.264 |
| MPEG-2, VP8, VP9, MVC, WMV9, JPEG/MJPEG, VC-1 | |
| ASI-TS OPERATING MODE | Supports TS, T2MI, BTS |

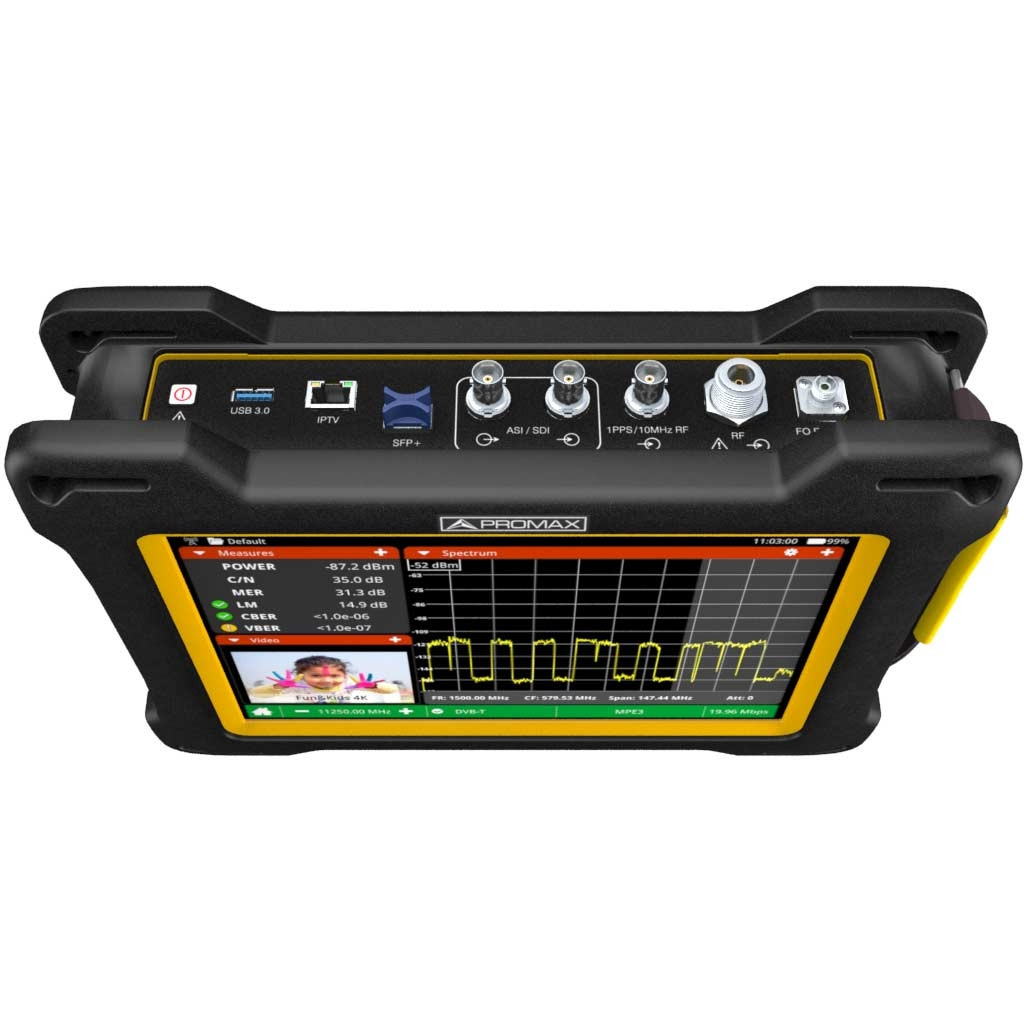

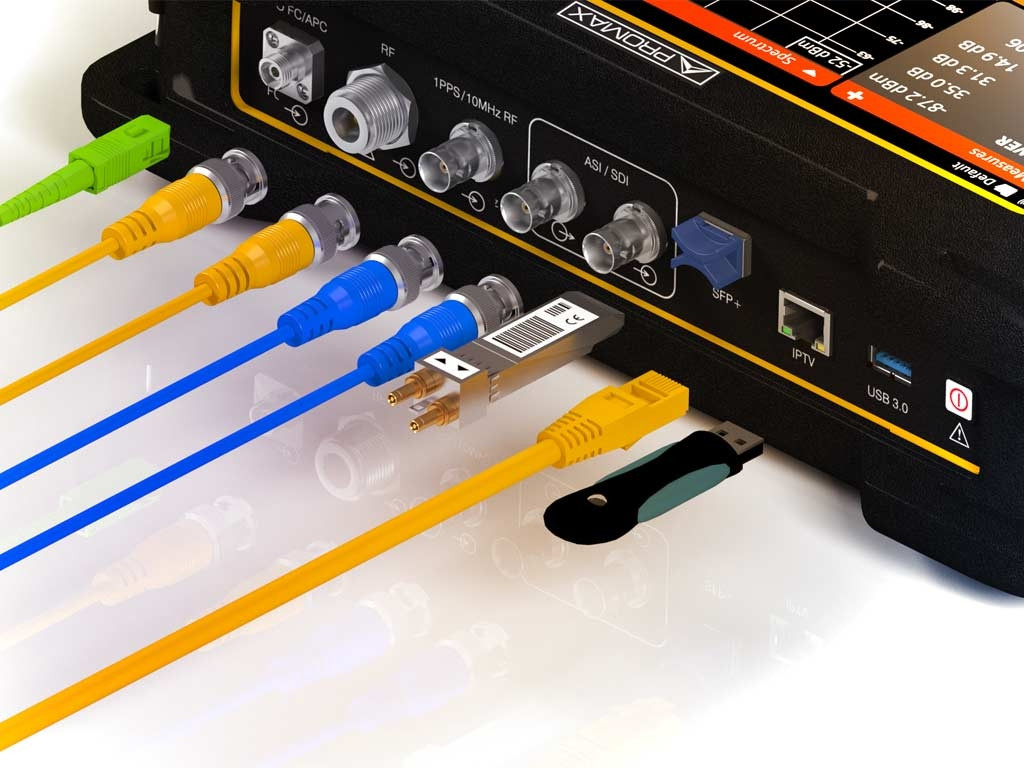

| INPUTS AND OUTPUTS | Universal RF input (N-type, female 50 Ω) |
| ASI/SDI input and output (BNC female, 75 Ω 3 Gbps) | |
| SPF+ connector | |
| Analogue audio/video input (3.5 mm jack) | |
| HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz) | |
| USB 2.0 (Micro-B). Mass storage/remote control commands | |
| Ethernet (RJ45) for webControl/remote control commands | |
| Optical input (FC/APC, female) | |
| 1 PPS / 10 MHz reference | |
| IPTV input (RJ45 Ethernet 10/100/1000 Mbps) | |
| Stereo headphone audio output (3.5 mm jack) | |
| USB 3.0 host (A-type USB-CDC devices) | |
| CAM (DVB-CI compliant CAM module input) | |
| FUNCTIONS | Constellation diagram |
| LTE ingress test | |
| Dynamic echoes analysis | |
| StealthID (instant identification of tuning parameters) | |
| PLS (Physical Layer Scrambling) | |
| Ultra fast Spectrum analyzer | |
| 4K decoder | |
| MAX and MIN hold | |
| FM RDS measurement and decoding | |
| Screenshots and Datalogger for measurement reports | |
| Beacon-Flyaways SNG and VSAT | |
| Wideband LNB | |
| WiFi | |
| LTE 1.8 GHz | |
| OTT | |
| Service Recording decoding | |
| Field strength measurement | |
| Task planner | |
| Merogram | |
| Spectrogram | |
| Signal monitoring | |
| Remote control (webControl) | |
| MER by carrier | |
| GPS (included) coverage analysis | |
| Video/Audio Streaming via USB | |
| SCAN + TILT | |
| TS recording | |
| TS analysis | |
| IPTV multicast measurement and decoding | |
| Shoulder attenuation | |
| Network delay | |
| DVB-T2 MI analysis | |
| Eye diagram (SDI) | |
| ALP recording | |
| Carrier Frequency Drift Test | |
| Full band optical power measurement | |
| 8 GB internal memory, expandable | |
| OPTIONS | Selective optical power meter + optical to RF converter |
| Advanced measurements for FM radio | |
| Advanced measurements for DAB/DAB+ digital radio |
