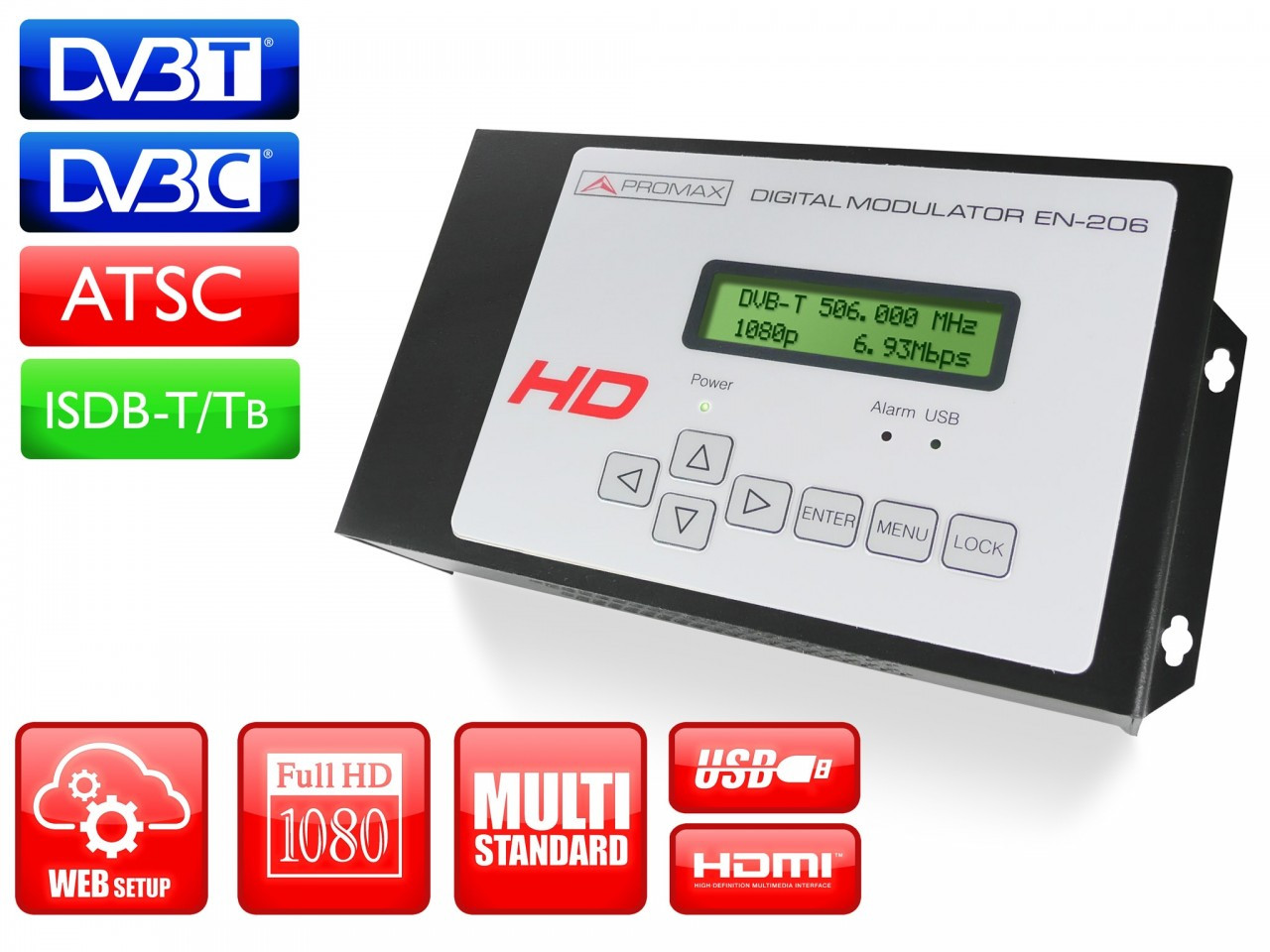

Promax EN-206E High Definition DVB-T Digital Modulator
Description
NEW 'E' SERIES VERSION
PROMAX EN-206E HIGH DEFINITION SINGLE CHANNEL DVB-T DIGITAL MODULATOR
CREATE AN HD-DTT CHANNEL FROM AN HD SOURCE
The new Promax EN-206E home modulator sends HDMI high definition audio / video signal from TV satellite receivers, closed-circuit television cameras (CCTV), video players or USB pendrives to a TV which uses DVB-T, ATSC and now ISDB-T/Tb (on demand) Digital Terrestrial Television standards, as well as DVB-C digital cable television receivers.
BUILT-IN WEBSERVER: The EN-206E can be set from a PC, accessing to its internal web settings page (webserver). It can also be set via the keyboard and display built on the modulator.
The EN-206E includes an RF combiner on which a channel modulated from existing antenna signals can be added easily. The RF output can add the new channel to the current ones and be connected to one or all the TVs in a house, hotel, convention center, stadium etc. It is a passive combiner that works even if the modulator is off. It can also be daisy-chained with other EN-206E modulators and with any other RF signal so that the number of channels in the SMATV system can be increased as desired.
TECHNICAL SPECIFICATIONS EN-206E
| INPUTS | HDMI, YPbPr, CVBS, S-Video, USB |
| HDMI INPUT | |
| Video encoding | MPEG-4 AVC/H.264 |
| Video resolutions | 1920x1080 @(50/60p, 50/60i), 1280x720 @(50/60p) |
| Audio encoding | MPEG-1 Layer II, MPEG2-AAC, MPEG4-AAC |
| Audio bit rate | 64, 96, 128, 192, 256, 320, 384 kbps |
| CVBS / S-VIDEO INPUTS | |
| Resolutions | 720x576 @50i (PAL), 720x480 @60i (NTSC) |
| Encoding | MPEG-4 AVC/H.264 |
| YPbPr INPUT | |
| Resolutions | 1920x1080 @(60i/50i), 1280x720 @(60p/50p) |
| Encoding | MPEG-4 AVC/H.264 |
| USB | TS files recording and playback |
| MODULATION | DVB-T COFDM |
| DVB-C J.83 A/B/C | |
| ATSC A/53 | |
| ATSC A/53 | |
| ISDB-T/Tb ARIB STD-B31 (on demand) | |
| MANAGEMENT | Via web interface (webserver) or LCD + control buttons |
