Technisat SATMAN 650 PLUS 65cm Aluminium Satellite Dish Smiley Yellow
Description
NEW SQUARE VERSION WITH EVEN BETTER RECEPTION!
TECHNISAT SATMAN 650 PLUS 65CM ALUMINIUM SATELLITE ANTENNA SMILEY YELLOW
PREMIUM ALU DISH - 20YR WARRANTY - POWDER COATED - 40MM COLLAR INCLUDED
EXCEPTIONAL RECEPTION PERFORMANCE EQUIVALENT TO MANY 80CM ANTENNAS

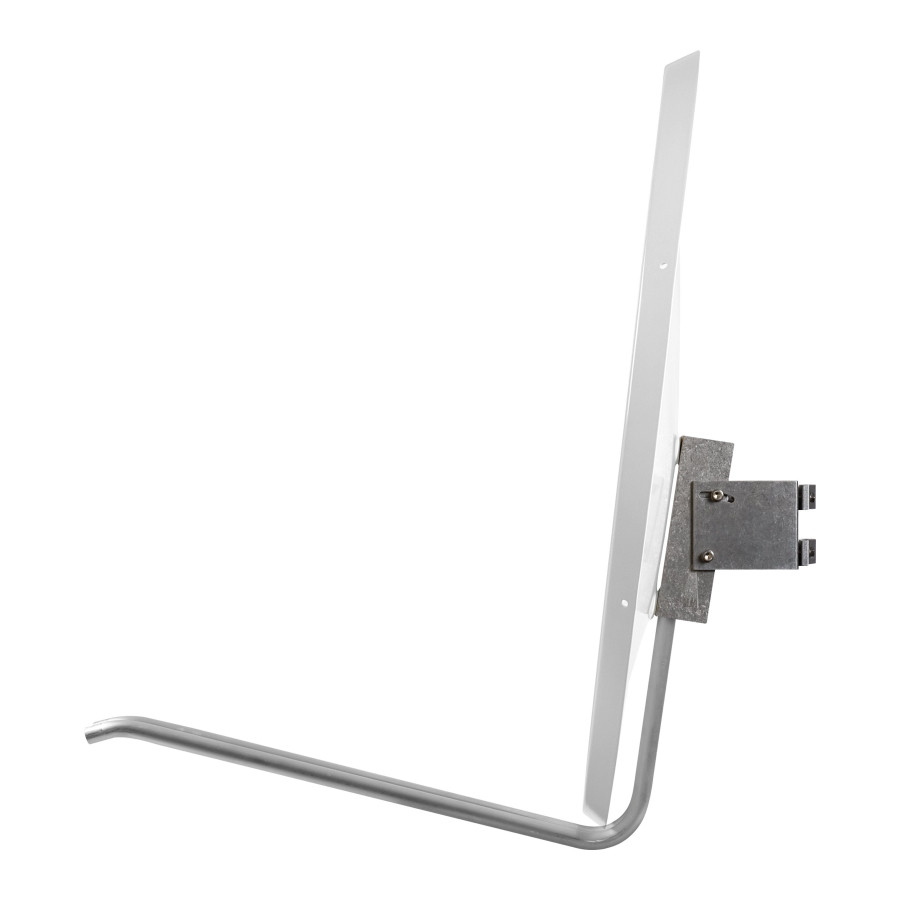

Premium all aluminium powder coated super powerful digital satellite dish antenna from respected manufacturer Technisat with a diameter of 65cm and completely pre-installed aluminium AZ/EL-mount.
This 65cm offset dish is made of first-class aluminium and is therefore 100% rust-free. The use of this high-quality material ensures the dish is durable and absolutely protected against the weather giving a very long life. All screws and washers are made of stainless steel.
Effortless attachment: The attachment of the dish face to the completely pre-assembled AZ/EL bracket is easy due to the special elongated holes. The dish is simply hooked-on and screwed tight.
Color variations: The dish antenna is available in different colours, so that the outdoor system can be selected to match the surroundings of your installation location.
Discreet installation: The SATMAN 650 PLUS takes up very little space and can be installed where larger circular antennas would interfere due to the impairment of the facade.
LNB form factor and colour may differ slightly from item pictured. Performance will not be compromised.
| General characteristics | |
| Material | Aluminium |
| Coating | Powder-coated on both sides |
| Top features | Exceptional reception performance |
| Top features | Only 65cm small |
| Top features | Ideal for discreet installation |
| Top features | Ready for pole mounting |
| Top features | Can be easily motorised |
| Weight | 2.7kg inc bracketry and wall mount |
| Colour | Polar white / Beige (off-white) |
| Slate gray (anthracite), Brick red | |
| Smiley (yellow) | |
| Technical data | |
| Rated measurement | 0.65m |
| Material thickness | 1.5 mm |
| Mast diameter | 65 mm max. |
| F/D | 0.69 |
| Gain | 35.7 dBi @ 11,3 GHz |
| Offset angle | 27 degrees |
| Feed reception | 40mm |
| What's in the box | |
| Satellite antenna 65cm | |

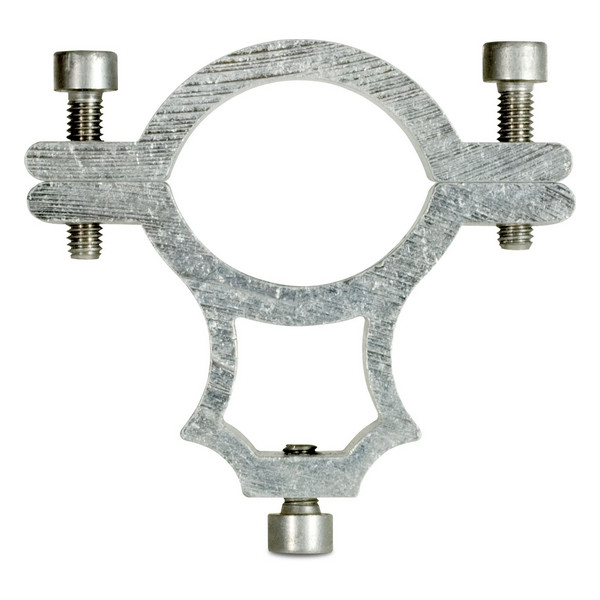

| AZ/EL bracket with 40mm collar | |
| Screws | |
| Assembly instructions | |
| Tool | |
| LNB (if selected) |
