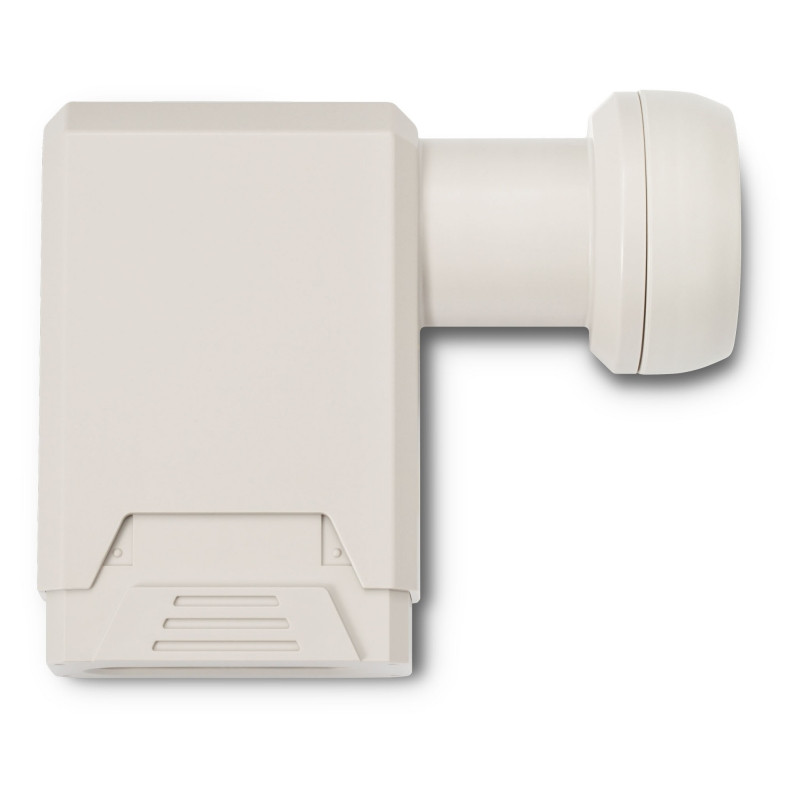

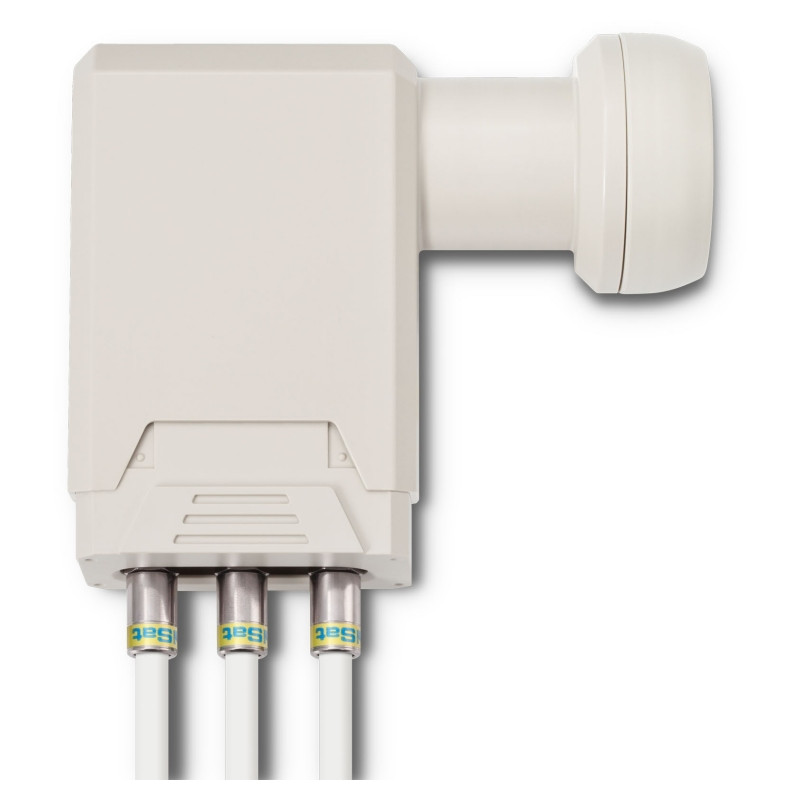

Technisat SCR LNB Hybrid with Two Legacy Outputs
£62.95
📦 Delivery from £2.99
· 1 kg — Royal Mail, Evri or InPost at checkout
⚠ Only 1 left in store
⚡ Same-day dispatch
🏪 Walk-in store — 349 Harehills Lane, Leeds, LS9 6AX
⭐ 26+ years in Leeds
Description
TECHNISAT SCR HYBRID LNB WITH TWIN LEGACY OUTPUT
The TechniSat SCR LNB (aka Unicable) can provide up to 4 participants via one coaxial cable with the complete programs of a satellite. This is also the ideal solution for signal feed-in of multi-tuner receiver device (DVR) to watch a program while recording one or more others.
The two additional LNB legacy (regular) outputs offer additional flexibility for the connection of non-SCR-compatible receivers. So can be operated without the use of a multi-switch with up to six different digital TV sets or receiver.
Key Features:
- 4 Receiver with SCR support connectable
- 2 Receiver via legacy output connectable
- SCR protocol according to EN 50494
- F-connectors
- Feed ø40 mm
- Weatherproof housing
- 3 Year Warranty
Technical Specification
| Frequency range | 10.7 ... 12.75 GHz |
| LNB | |
| Vertical power supply | 11,5 ... 14 V |
| Horizontal power supply | 16 ... 19 V |
| LNB modulation | 22 kHz |
| DiSEqC | 1.0 |
| LOF | |
| Lower frequency range | 9.75 GHz |
| Upper frequency range | 10.6 GHz |
| Noise Factor | |
| Lower frequency range | 1 dB |
| Upper frequency range | 1 dB |
| Output frequency range | |
| Lower frequency range | 950 ... 1950 MHz |
| Upper frequency range | 1100 ... 2150 MHz |
| Frequency range | 950 ... 2150 MHz |
| Power supply | |
| Power consumption | max. 280 mA @13,5 V |
| Single-cable output | |
| Output frequency | 950 ... 2150 MHz |
| Number of output channels | 4 |
| Frequency of output channels | 1210, 1420, 1680, 2040 MHz |
| Technical data | |
| Outputs | 3 (1x SCR (gilded), 2x Legacy) |
| Feed Reception | ø 40 mm |
| Characteristics | |
| Operating temperature | -30 ... 60 °C |
| Weight | 300 g |
| Colour | Off white |
