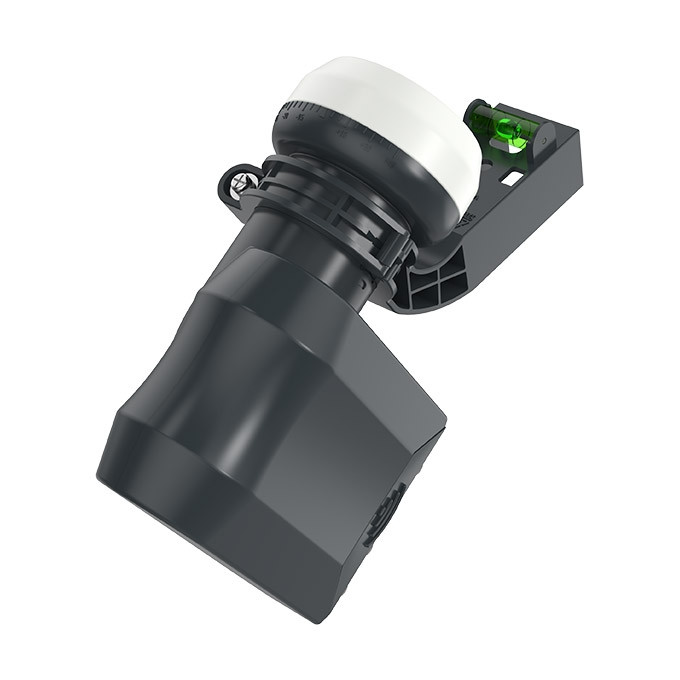

Visiblewave Hybrid Six Output Wideband Legacy LNB with Clamp VHK6
£39.95
📦 Delivery from £2.99
· 1 kg — Royal Mail, Evri or InPost at checkout
⚠ Only 1 left in store
⚡ Same-day dispatch
🏪 Walk-in store — 349 Harehills Lane, Leeds, LS9 6AX
⭐ 26+ years in Leeds
Description
VISIBLE WAVE HYBRID WIDEBAND+LEGACY LNB - SIX OUTPUT - MODEL: VHK6
The visiblewave VHK6 is a six output wideband/legacy LNB compatible with Sky Q™. The VHK6 offers twin wideband output for Sky Q™ and quad legacy output for connection to regular satellite TV equipment. The VHK6 has a 40mm collar and comes complete with clamp with built-in spirit level for attachment to a Sky™ dish. Without clamp the LNB can be attached to a regular satellite dish antenna.
Key Features:
- Finished in grey
- Supplied with a Sky™ compatible bracket
- Six output (2 Wide / 4 (Quad) Legacy)
- 40mm collar - can be fitted to a regular satellite dish
- Built-in spirit level
Technical Specification
| Wideband Twin Spec. | |
| Input Frequency | 10.7 ~ 12.75 GHz |
| Output frequency | Vertical: 290 ~ 2340 MHz |
| Horizontal: 290 ~ 2340 MHz | |
| L.O. frequencies | 10.41 GHz |
| L.O. Stability | +/-0.5 MHz (max) @ Room Temp. |
| +/-1 MHz (max) @ -40°C ~ +60°C | |
| L.O. Phase Noise | -50dBc/Hz @ 1kHz (max.) |
| -75dBc/Hz @ 10kHz (max.) | |
| -100dBc/Hz @ 100kHz (max.) | |
| Noise Figure | 0.1 dB (typ.) |
| Conversion Gain | 50 dB (min) / 60 dB (max) |
| Gain Flatness @ 26MHz | +/-0.5dB (typ.) |
| Gain Variation | 7dB (max.) @ full band |
| Cross Polar Isolation | 25 dB (typ.) |
| Image Rejection | 40 dB (min) |
| Current Consumption | 0.85W (max.) (70mA @ +12V DC) |
| Power Voltage | 9 – 19V DC |
| Connector Type | Female F-connector |
| Output Spurious | <-60dBm |
| Operating Temp. | -40’C ~ +60’C |
| RED Compliance | EN 303 372-1 |
| Part number | VW2L |
| Legacy Quad Spec. | |
| Input frequency | low band: 10.7 ~ 11.7 GHz |
| high band: 11.7 ~ 12.75 GHz | |
| Feedhorn – Linear | Optimised for offset dish |
| Output Frequency | low band: 950 ~ 1950 MHz |
| high band: 1100 ~ 2150 MHz | |
| Output 1,2,3,4 VSWR | Ratio 2.0:1 (typ.), 2.5:1 (max.) |
| (950 – 2150 MHz) | |
| L.O. frequencies | 9.75 / 10.6 GHz |
| L.O. Stability | 0.5 ~ 1.0 MHz |
| L.O. Phase Noise | -55dBc/Hz @ 1kHz (max.) |
| -75dBc/Hz @ 10kHz (max.) | |
| -90dBc/Hz @ 100kHz (max.) | |
| Conversion Gain | 56 ~ 63 dB @ 25ºC |
| 54 ~ 60 dB @ -40ºC ~ 60ºC | |
| Gain Flatness | 3 dB P-P (typ.), 5 dB P-P (typ.) |
| Over Full Band | |
| Gain Flatness @ 26MHz | +/- 0.5 dB P-P (typ.) |
| @ 300MHz | +/- 4 dB P-P (typ.) |
| 1.7GHz | -50 dB (typ.) -47 dB (max.) |
| Noise Figure | 0.3 dB (typ.), 1.0 dB (max.) |
| Cross Polar Isolation | 18 dB (min.), 20 dB (typ.) |
| Image Rejection | 37 dB (min), 40 dB (typ.) |
| Current Consumption | 120mA (typ.), 140mA (max.) |
| Operating Voltage & | Vertical 11.5 – 14.5 VDC |
| Band Switching | Horizontal 15.5 – 19 VDC |
| Low-Band 0 KHz | |
| High-Band 18 – 26 KHz | |
| Connector Type | Female F-connector |
| Operating Temp. | -40’C ~ +60’C |
| RED Compliance | EN 303 372-1 |
| Part number | VHK6 |
