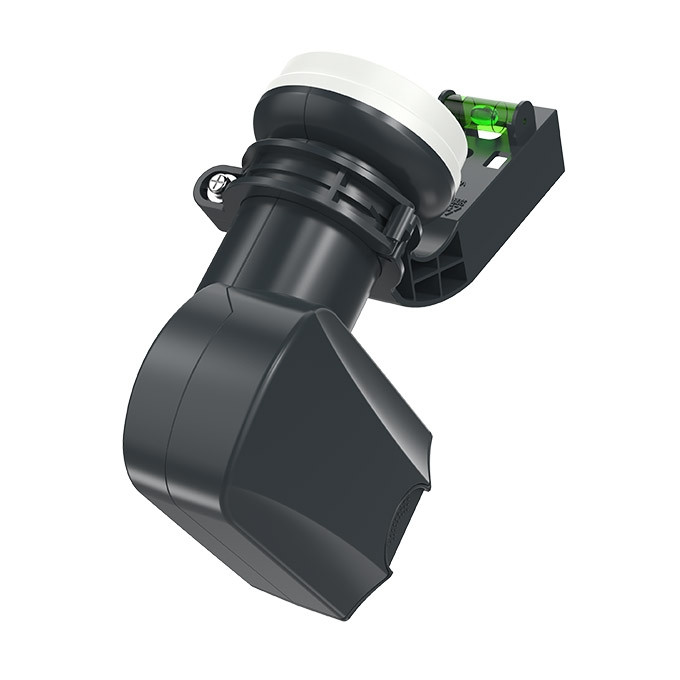

Visiblewave Twin Output Wideband LNB with Clamp VW2L
£22.95
📦 Delivery from £2.99
· 0.5 kg — Royal Mail, Evri or InPost at checkout
⚠ Only 1 left in store
⚡ Same-day dispatch
🏪 Walk-in store — 349 Harehills Lane, Leeds, LS9 6AX
⭐ 26+ years in Leeds
Description
VISIBLE WAVE WIDEBAND LNB - TWIN OUTPUT - MODEL: VW2L
The visiblewave VW2L is a twin output wideband LNB compatible with Sky Q™. The VW2L has a 40mm collar and comes complete with clamp with built-in spirit level for attachment to a Sky™ dish. Without clamp the LNB can be attached to a regular satellite dish antenna.
Key Features:
- Finished in grey
- Supplied with a Sky™ compatible bracket
- 40mm collar - can be fitted to a regular satellite dish
- Two outputs - V / H
- Built-in spirit level
Technical Specification
| Input Frequency | 10.7 ~ 12.75 GHz |
| Output frequency | Vertical: 290 ~ 2340 MHz |
| Horizontal: 290 ~ 2340 MHz | |
| L.O. frequencies | 10.41 GHz |
| L.O. Stability | +/-0.5 MHz (max) @ Room Temp. |
| +/-1 MHz (max) @ -40°C ~ +60°C | |
| L.O. Phase Noise | -50dBc/Hz @ 1kHz (max.) |
| -75dBc/Hz @ 10kHz (max.) | |
| -100dBc/Hz @ 100kHz (max.) | |
| Noise Figure | 0.1 dB (typ.) |
| Conversion Gain | 50 dB (min) / 60 dB (max) |
| Gain Flatness @ 26MHz | +/-0.5dB (typ.) |
| Gain Variation | 7dB (max.) @ full band |
| Cross Polar Isolation | 25 dB (typ.) |
| Image Rejection | 40 dB (min) |
| Current Consumption | 0.85W (max.) (70mA @ +12V DC) |
| Power Voltage | 9 – 19V DC |
| Connector Type | Female F-connector |
| Output Spurious | <-60dBm |
| Operating Temp. | -40’C ~ +60’C |
| RED Compliance | EN 303 372-1 |
| Part number | VW2L |
