Maximum Single Output Universal LNB
£12.95
📦 Delivery from £2.99
· 1 kg — Royal Mail, Evri or InPost at checkout
⚠ Only 1 left in store
⚡ Same-day dispatch
🏪 Walk-in store — 349 Harehills Lane, Leeds, LS9 6AX
⭐ 26+ years in Leeds
Description

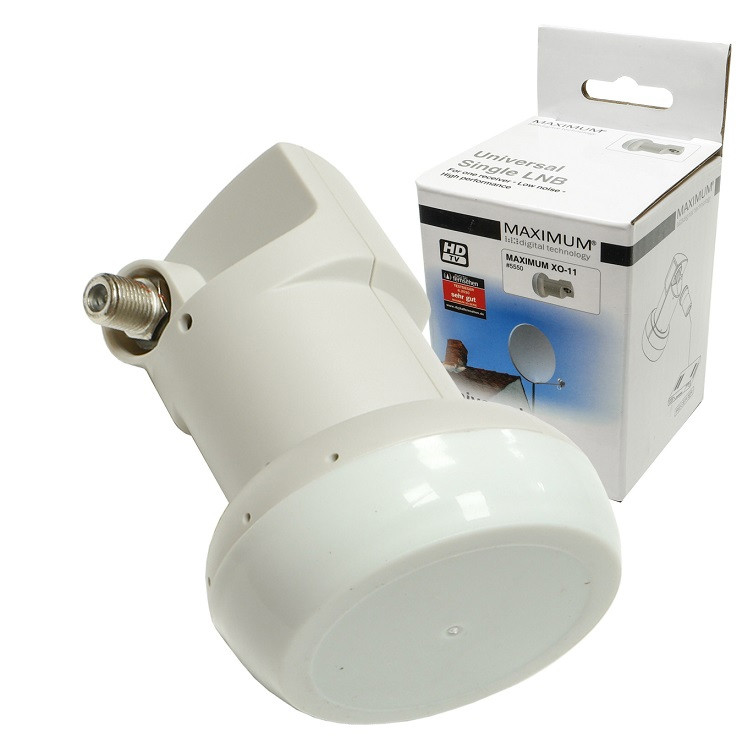

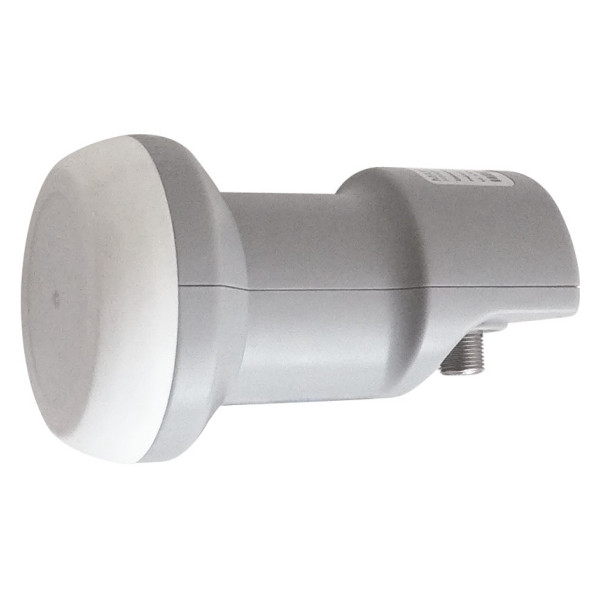

MAXIMUM SINGLE OUTPUT 0.1dB UNIVERSAL LNB
HIGH PERFORMANCE HDTV DVB-S2 COMPLIANT LNB
The Maximum XO-11 Single Output 0.1dB Universal LNB provides outstanding low noise 0.1dB performance designed to meet strict high-quality specifications to give you optimum signal reception.
Comes complete with rubber weather boot.
Technical Specification:
| Input Frequency (GHz) | Low Band:10.7~11.7 |
| High Band:11.7~12.75 | |
| Output Frequency (MHz) | Low Band:950~1950 |
| High Band:1100~2150 | |
| Local Oscillator Frequency (GHz) | 9.75 / 10.60 |
| L.O. Stability | ±1MHz(Max.)@25°C |
| ±2MHz(Max.)@(-40°C to +60°C) | |
| Noise Figure (dB) | 0.1 (Typ.) |
| Cross Pol. Isolation (dB) | 20 (Typ.) |
| Gain Flatness | ±0.5dB/27MHz |
| Reflector Type | Offset |
| L.O. Phase Noise | -50dBc/Hz@1KHz |
| -75dBc/Hz@10KHz | |
| -100dBc/Hz@100KHz | |
| 1dB Compression point (dBm) | 0 (Min.) |
| Image Rejection (dB) | 45 (Min.) |
| Output VSWR | 2.5:1(Max.) |
| Output impedance (Ω) | 75 |
| Output Connector | F Type Female 1x |
| Band Select Control (KHz) | High Band:22±4 |
| Low Band:0 | |
| Polarity Select Control | V:11.5~14V DC |
| H:16~19V DC | |
| DC Current Consumption (mA) | 190 (Typ.) |
Scope of Delivery
- Maximum Single Output Universal LNB
- Rubber cable boot
Warranty Information
1 Year
