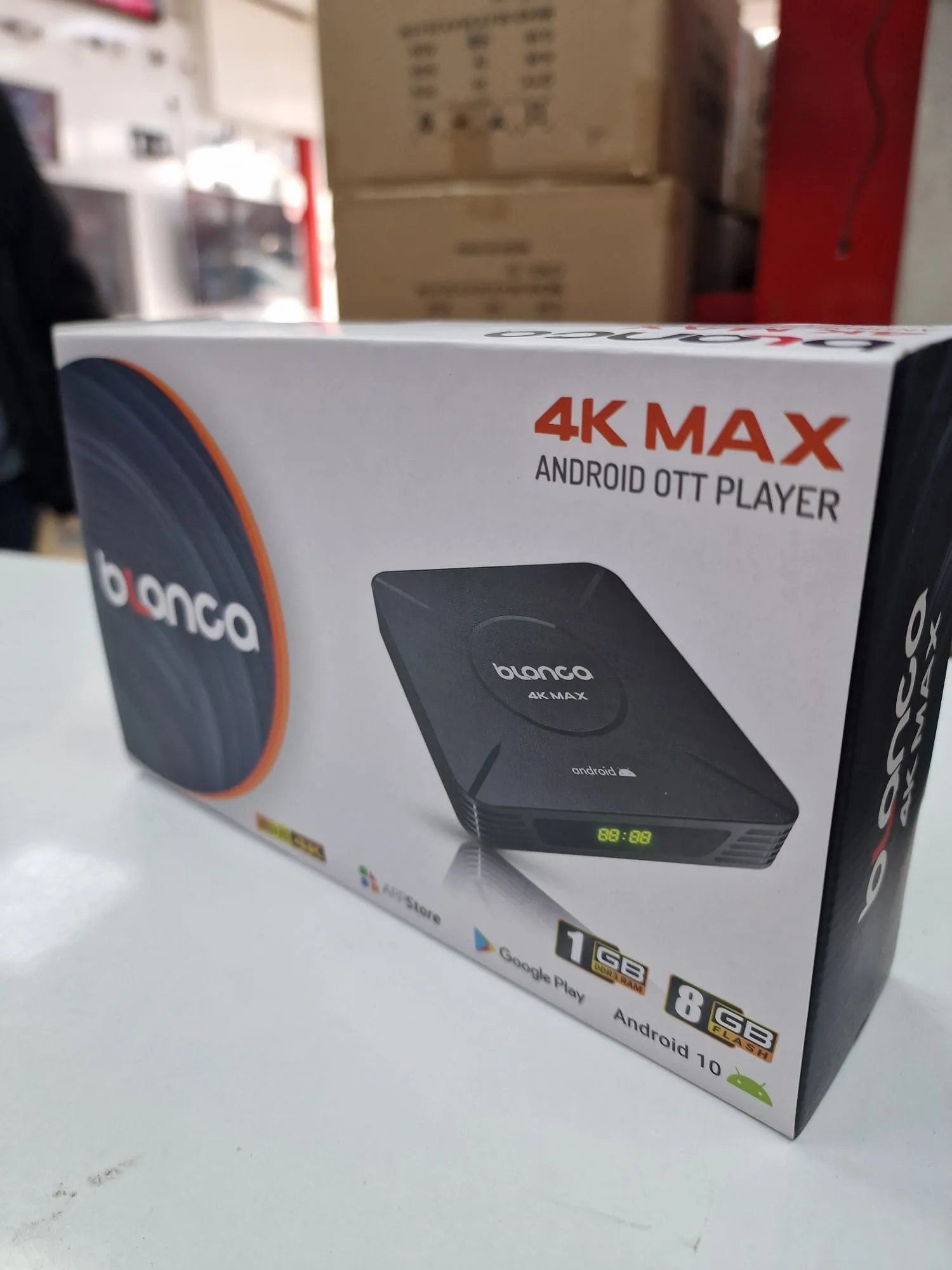

Redline Blanca 4K MAX ANDROID OTT PLAYER  1 GB 8 GB Google Play Android 10

H313
CPU Allwinner H313 Quad Core ARM Cortex A53
GPU G31 OPenGL ES3.2
Memory DDR3：1GB (Option: 2GB)
Flash eMMC：8GB (Option:16GB )
WiFi IEEE 802.11 b/g/n 2.4G/5.8G
Moudle Plastic : Black Color
I/O
1*HDMI 4K*2K UHD Output, HDMI 2.0A
1*AV OUT 480i/576i standard definition output
2*USB 1* USB Host Port ,1*USB Device
1*SPDIF
1*RJ45 Ethernet Interface
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB
Power DC 5V/2A；LED indicator，Working ：Blue; Standby：Red
Software
OS Android 10.0
Video
• Supports video decoding up to 4K@60fps
• Supports multi-formats:
- H.265 Main10@L5.1 up to 4K@60fps
- VP9 Profile 2 up to 4K@30fps
- AVS2 JiZhun 10bit Profile up to 4K@30fps
- H.264 BP/MP/HP@L4.2 up to 4K@30fps
- H.263 BP up to 1080p@60fps
- MPEG-4 SP/ASP@L5 up to 1080p@60fps
- MPEG-2 MP/HL up to 1080p@60fps
- MPEG-1 MP/HL up to 1080p@60fps
- Xvid up to 1080p@60fps
- Sorenson Spark up to 1080p@60fps
- VP8 up to 1080p@60fps
- AVS/AVS+ JiZhun Profile up to 1080p@60fps
- WMV9/VC1 SP/MP/AP up to 1080p@60fps
- JPEG HFIF file format up to 45MPPS
H.264 BP/MP/HP
• H.264 supports I/P frame, and only supports single reference frame
• MJPEG/JPEG baseline
• Maximum 16-megapixel(4096 x 4096) resolution for H.264 encoding
• H.264 encoding capability: 1080p@60fps
• JPEG snapshot performance of 1080p@60fps independently
• Supports the constant bit rate(CBR)ariable bit rate(VBR) bit rate control mode, ranging from 256kbit/s to
100Mbit/s
• Encoding of eight regions of interest(ROIs)
Audio
Supports MP3, AAC, WMA, RM, FLAC, Ogg
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
• Two DAC channels
• Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)
• One Audio HUB, supporting internal mixing function
• Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)
• Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode
• I2S mode supports 8 channels, and 32-bit/192kbit sample rate
• I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate
• One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs
• Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones
Image HD JPEG、BMP、GIF、PNG、TIF
Language English French German Spanish Italian etc multilateral languages
Appliactions
Online Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps Apps download freely form android market、amazon app store etc.
Medium Local Media playback,Support HDD, U Disck ,TF Card .
Others
Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing
Product dimension 100*100*20(mm)
Qty per unit packing 1pcs
Unit packing: (LxWxH) 170*115*55(mm)
Unit packing (G.W.) 0.36KG
Qty per export carton 20PCS
Export carton (WxHxL) 370*290*240 （mm）
