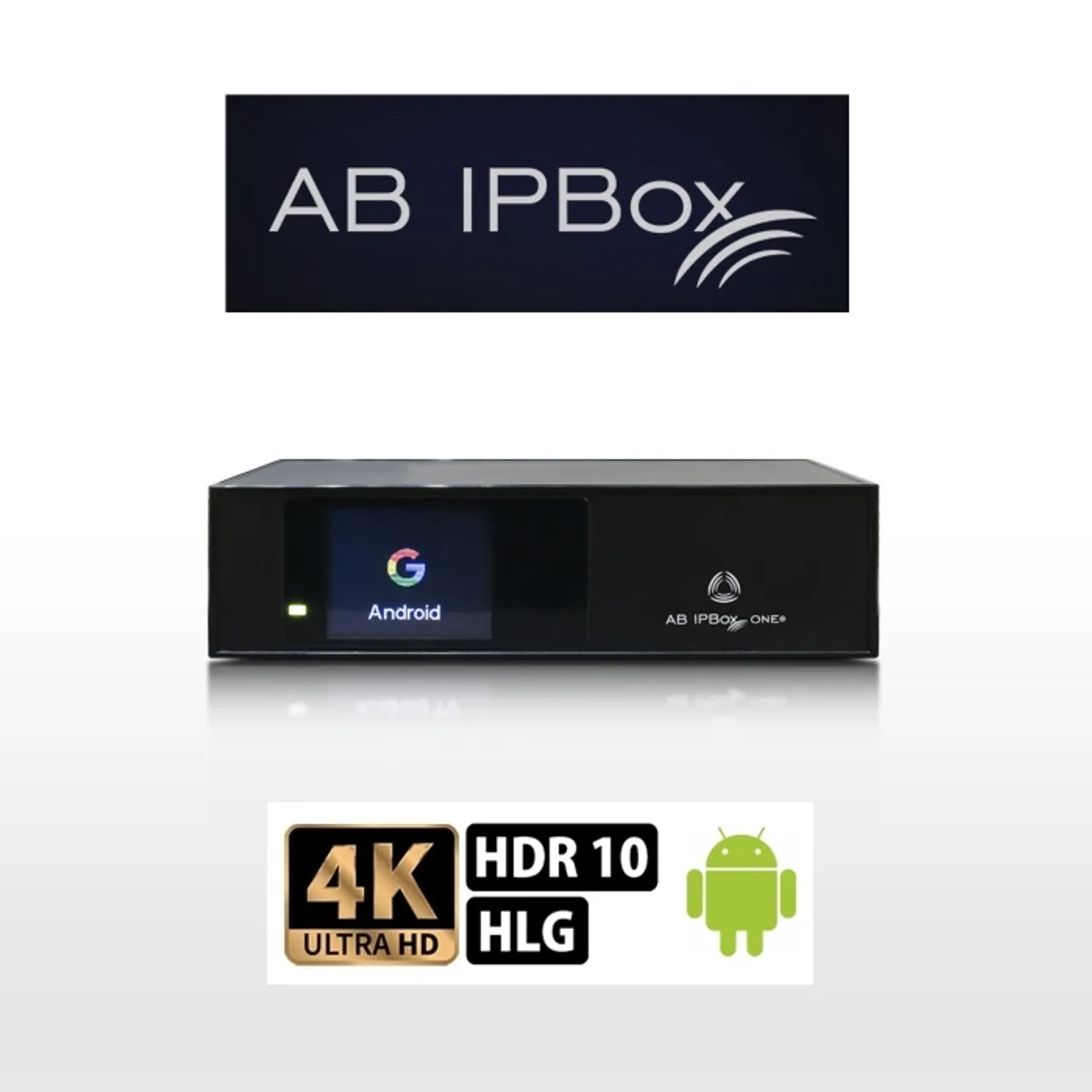

AB IP BOX ONE 4K UHD DVB-S2X SATELLITE RECEIVER WITH ANDROID TV
4K UHD SATELLITE RECEIVER WITH ANDROID TV MULTIMEDIA CENTRE!
ANDROID OS TFT DISPLAY DVB-S2X TUNER BUILT-IN WIFI
4K UHD 2160p FRONT TFT DISPLAY PVR READY (USB/SD) CARD SLOT

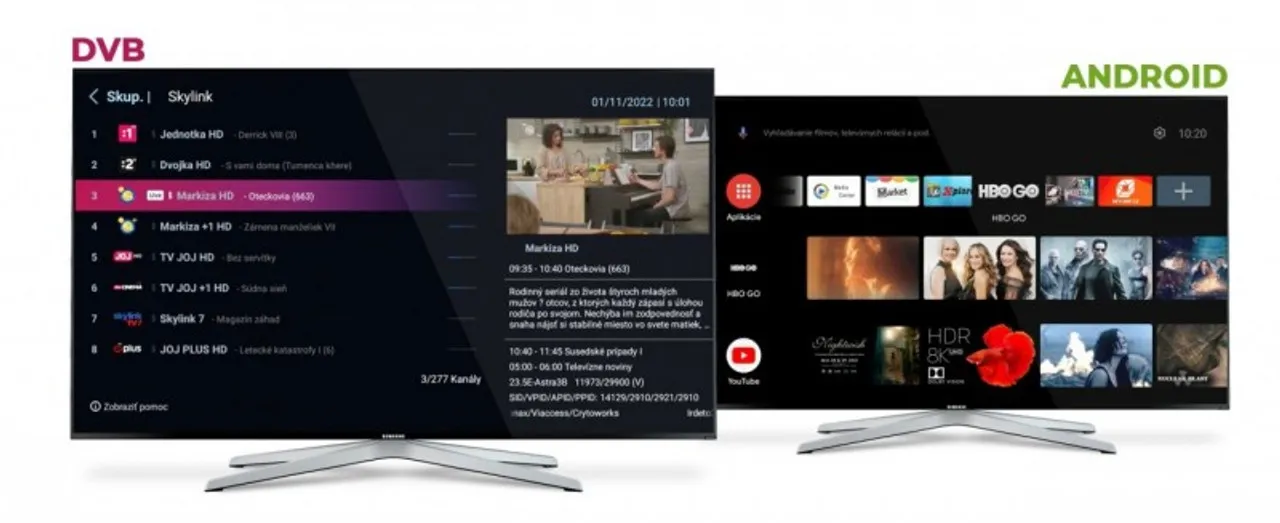

The AB IPBox ONE is a 4K UHD digital satellite receiver with a DVB-S2X tuner coupled with an ANDROID operating system providing the user with a full multimedia experience of both 4K satellite TV as well as the ability to receive content through your favourite Apps such as YouTube on a single device.
Highlights:

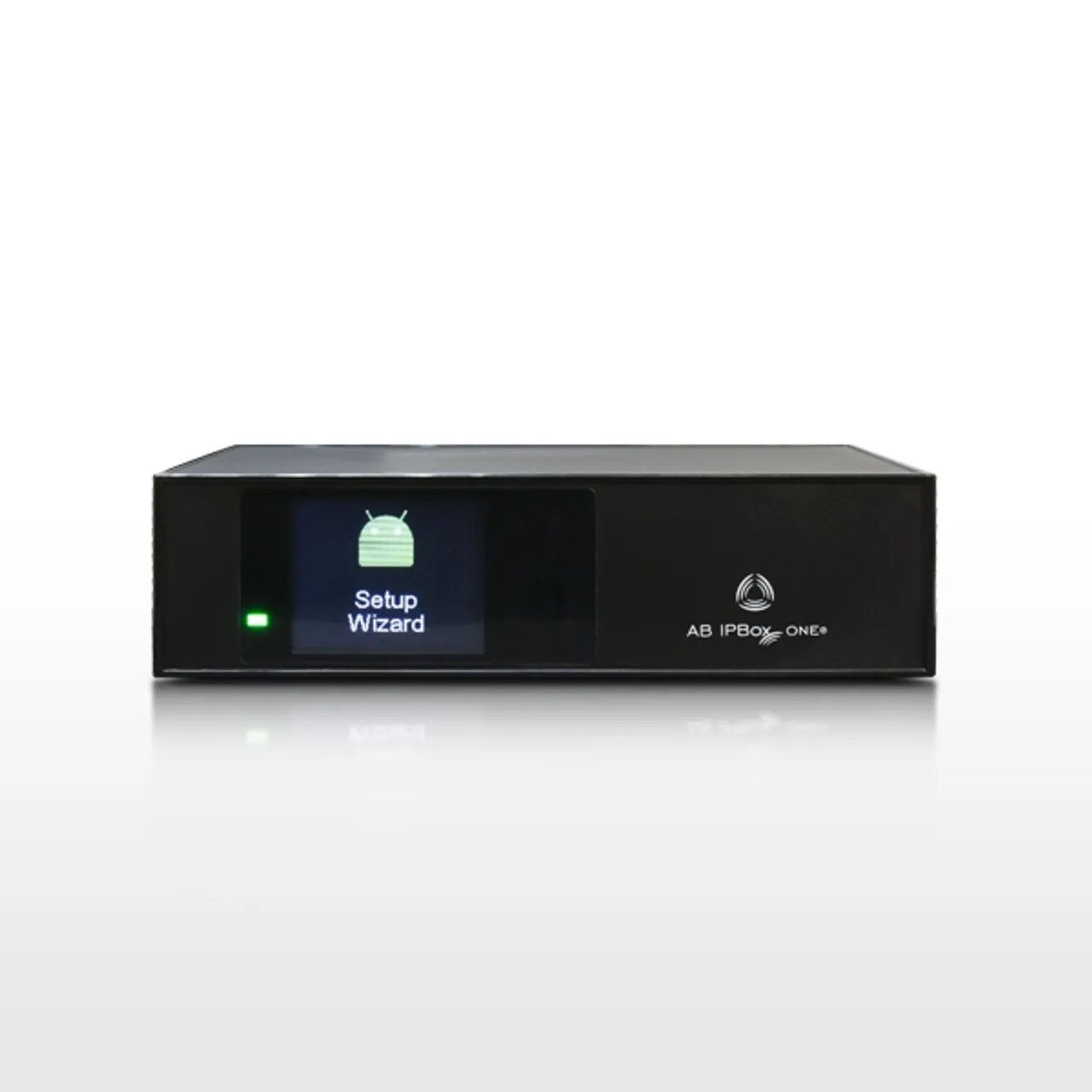

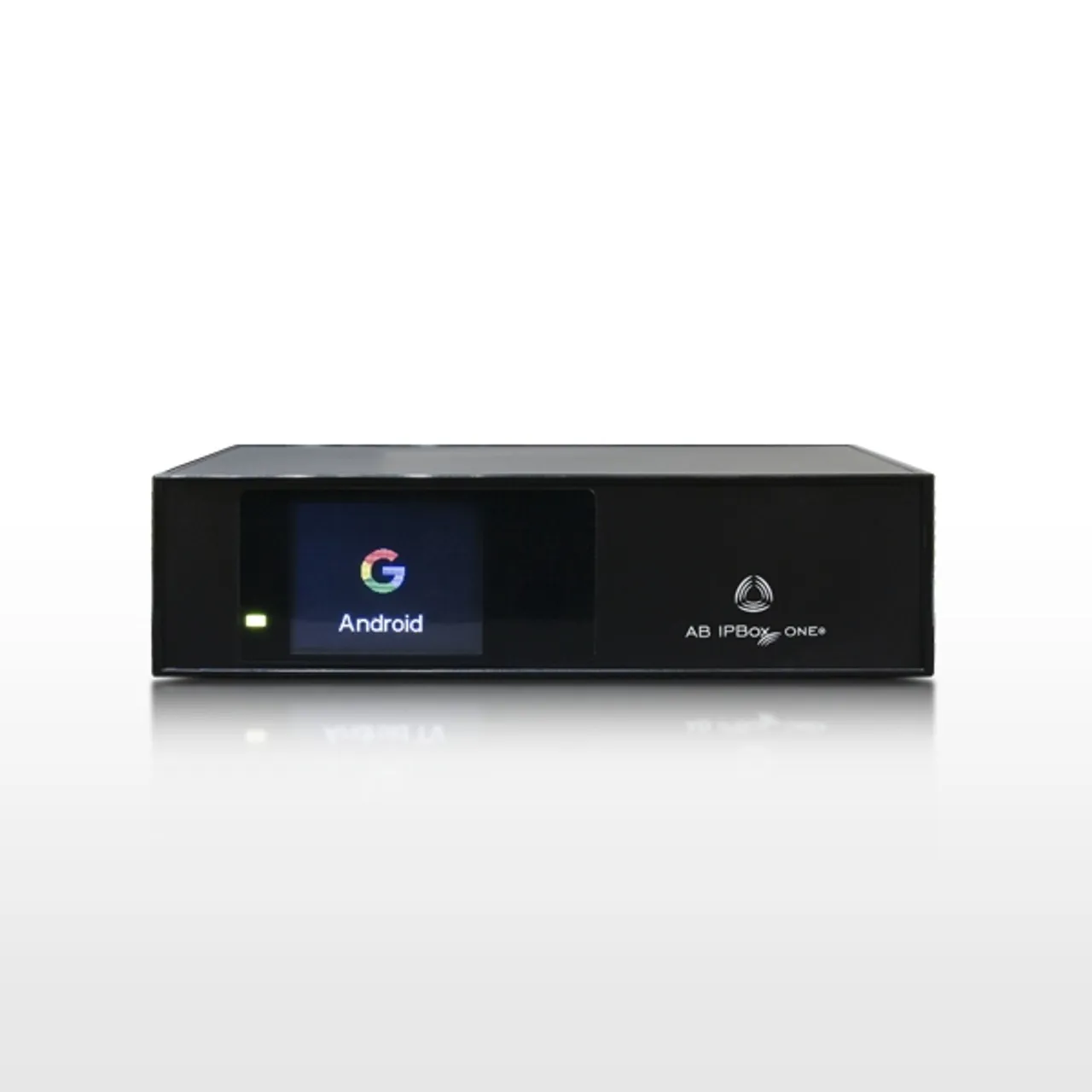

The AB IPBox ONE marks the beginning of a new generation of 4K receiver. With the IPBox ONE, you get a very powerful receiver with dual-band WiFi and a quad-core processor, a front LCD-TFT display, smartcard reader and several apps.
The AB IPBox ONE runs on the Android 8.0 operating system and brings some innovations, such as its powerful ARM Cortex-A53 processor. In addition, the IPBox ONE has a new and powerful Mali T450 GPU, as well as 2GB DDR4 RAM and working memory with 16GB eMMC 5.0.
The AB IPBox ONE receiver has numerous interfaces for uncomplicated integration and connection to existing devices (e.g. your home cinema system). External storage devices such as MicroSD and USB sticks, connect the IPBox ONE to either a USB 2.0 or USB 3.0 port. The IPBox ONE receiver also has an HDMI connection and a 10/100 Mbit Ethernet LAN connection.

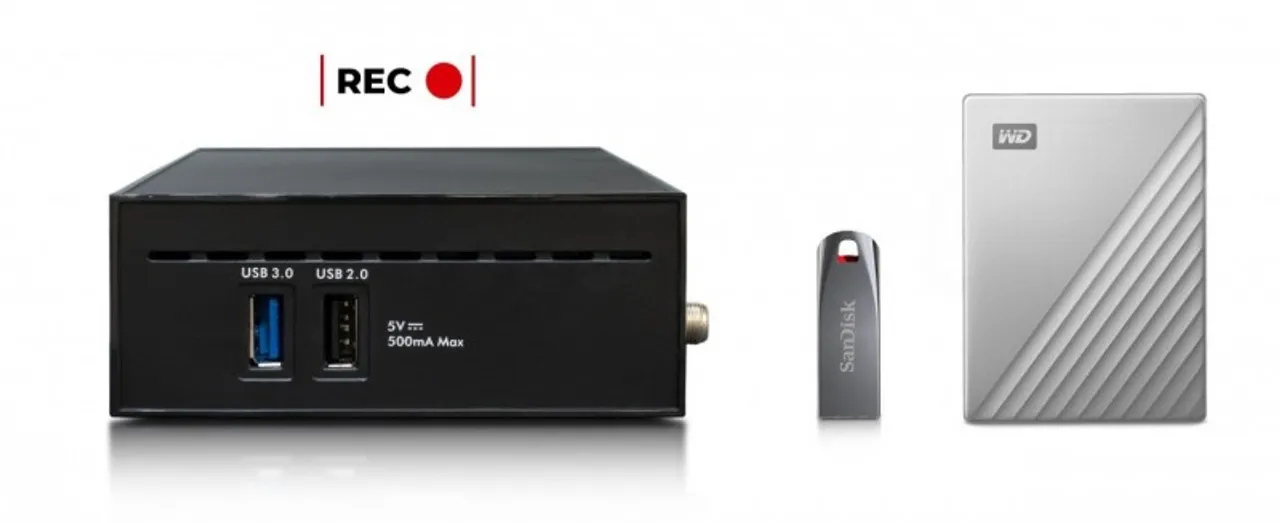

You can save recordings to an external USB HDD. The receiver can simultaneously record two programs on the same transponder.
TECHNICAL SPECIFICATION
| Operation system | |
| OS | Android 8.0 Oreo |
| System Resources | |
| CPU | ARM Cortex A53, Quad core 64bit |
| GPU | High-performance multi-core Mali T450 |
| Storage Memory | 8GB eMMC 5.0 |
| System Memory | 2 GByte, DDR3 SDRAM |
| MPEG Transport Stream A/V Decoding | |
| Transport Stream | ITU-T H.265/HEVC & H.264 |
| ISO/IEC 13818-2 MPEG-2 | |
| AVS&AVS+, VP6, VP8, VP9 | |
| Profile Level | ITU-T H.265 Main 10 Profile@L5.1 high-tier |
| MPEG-2 MP@HL | |
| Input Rate | Max. 160Mbit/s (H.265) |
| Video Format | 4:3, 16:9, Letter Box, Pan& Scan |
| Video Resolution | 10bit, Up to 3840 x 2160@ 60fps |
| HDR10 Support, HLG | |
| Audio Decoding | MPEG I& II,MP3,Dolby Digital Plus |
| AAC-LC,HE-AAC V1/V2 | |
| Audio Mode | Stereo/Mono/Left/Right/Exchange |

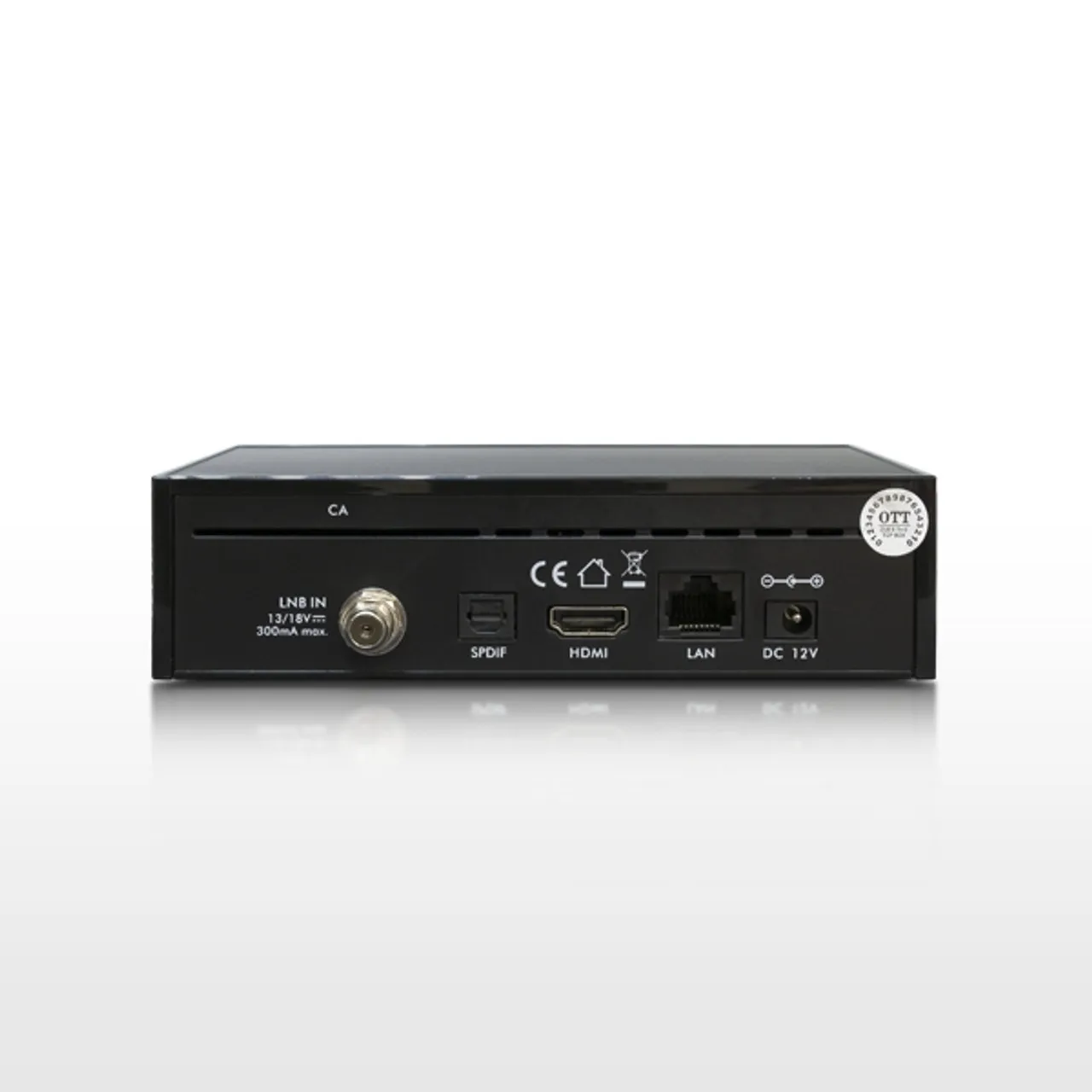

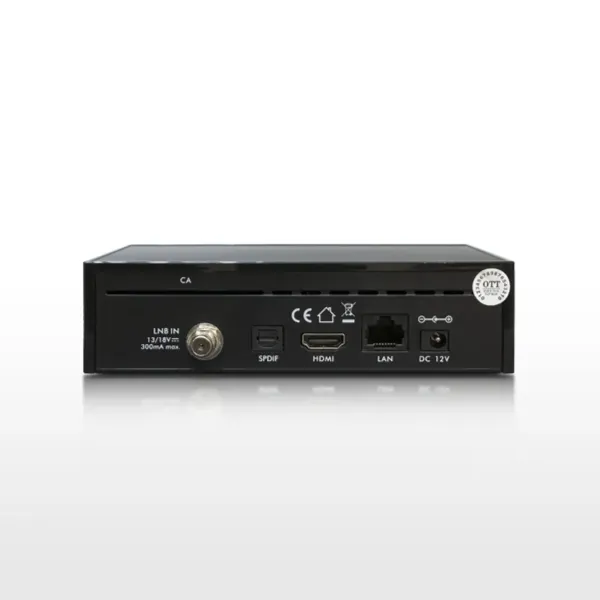

| Rear Panel | |
| Power Switch | Push button |
| DC Power Jack | 12Vdc / 1.5A |
| Smartcard slot | 1x |
| Tuner 1 | DVB-S2X |
| RJ-45 Connector | 10/100Mbps |
| HDM I Connector | Version 2.0a, HDCP 2.2, HDCP1.4 |
| SPDIF | Optical |
| Side Panel | |

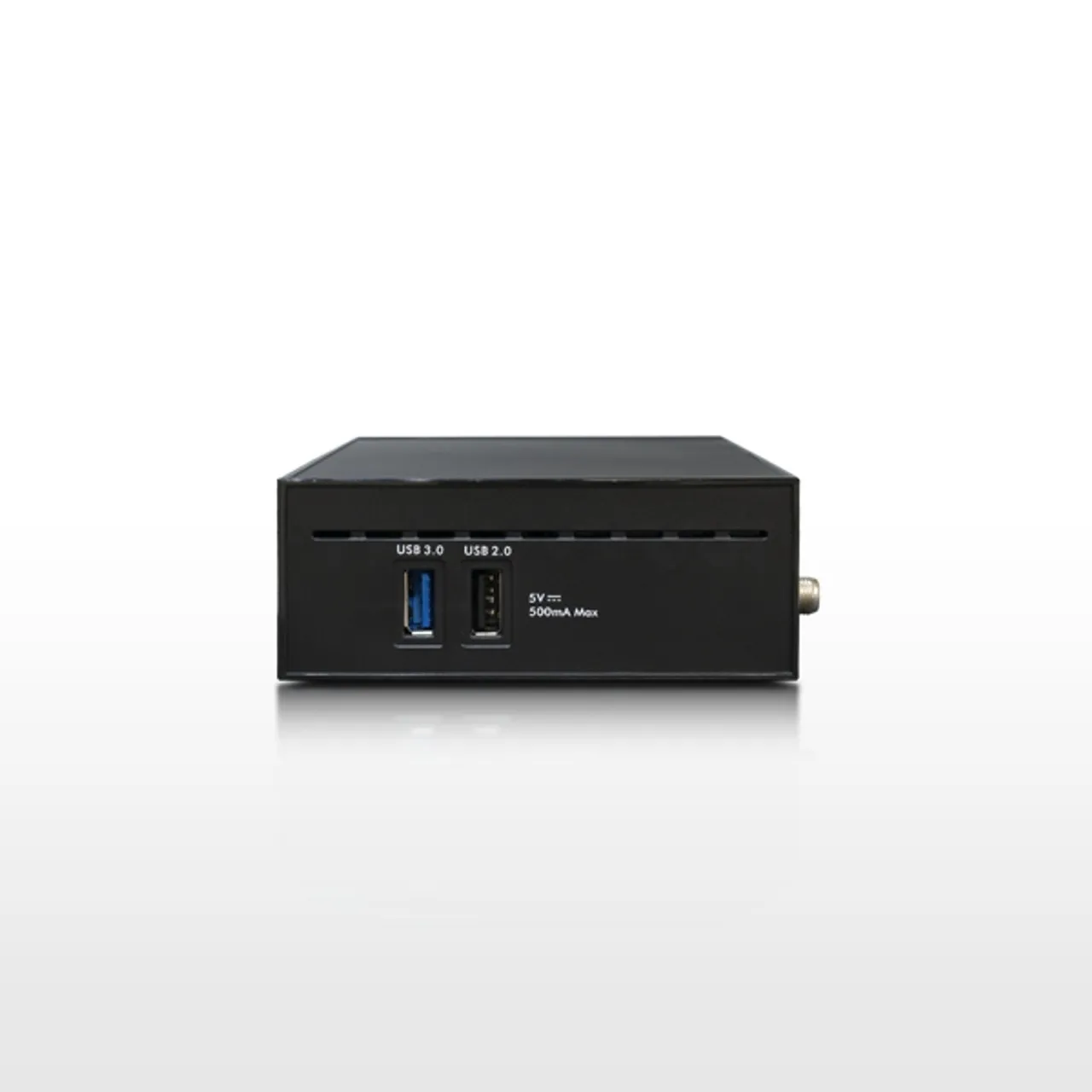

| USB Sockets | 1x USB3.0 and 1x USB2.0 Host Interface |
| USB Memory Stick & HDD, HUB Support | |
| FAT, NTFS Support | |
| 5Vdc, 500mA Max. | |
| On board | |
| Bluetooth Internal Antenna | Yes. 4.0 + EDR |
| Wifi Antenna Internal Antenna | IEEE 802. 11b/g/n/ac |
| 2.4GHz/5GHz Dual band(2T/2R) | |
| Tuner Option | |
| Input Connector | F-Type Female(Si-Labs SI2166) Support S2X |
| Frequency Range | 950M Hz to 2150M Hz |
| Signal Level | -25 to -70dBm |
| LNB Power & Polarisation | Vertical : +13.5V ± 0.5V Max 4500mA |
| 22KHz Tone | Horizontal : +18.5V ± 0.5V Max 500mA |
| Frequency : 22KHz ± 4KHz, 0.6Vp-±p0.2Vp-p | |
| Diseqc Control | Version 1.0, 1.2, USALS Compatible |
| Demodulation | QPSK & 8PSK |
| Input Symbol Rate | DVB-S : 1 ~ 55M bps / DVB-S2 : 1 ~ 45Mbps |
| Tuner 2 DVB-S2X | |
| Input Connector | F-Type Female(Si-Labs SI2166) Support S2X |
| Frequency Range | 950M Hz to 2150M Hz |
| Signal Level | -25 to -70dBm |
| LNB Power & Polarisation | Vertical : +13.5V ± 0.5V Max 4500mA |
| 22KHz Tone | Horizontal : +18.5V ± 0.5V Max 500mA |
| Frequency : 22KHz ± 4KHz, 0.6Vp-±p0.2Vp-p | |
| Diseqc Control | Version 1.0, 1.2, USALS Compatible |
| Demodulation | QPSK & 8PSK |
| Input Symbol Rate | DVB-S : 1 ~ 55M bps / DVB-S2 : 1 ~ 45Mbps |
| Front Panel | |
| TFT LCD | 1.77 inch TFT LCD |
| Power Supply | |
| Input Voltage | AC 90 ~ 250V, 50/60HZ |
| Output Voltage | 12V / 1.5A |
| Type | External AC to DC Adaptor |
| Power Consumption(Watt) | Stand-by Mode : Under 0.5W |
| Physical Dimension | |
| Size(WXDXH) | 150mm X 100mm X 40mm |
| Net Weight | 0.6 Kg |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -10 ~ 70 ℃ |
| Scope of Delivery | |
| AB IPBox ONE Set Top Box | |

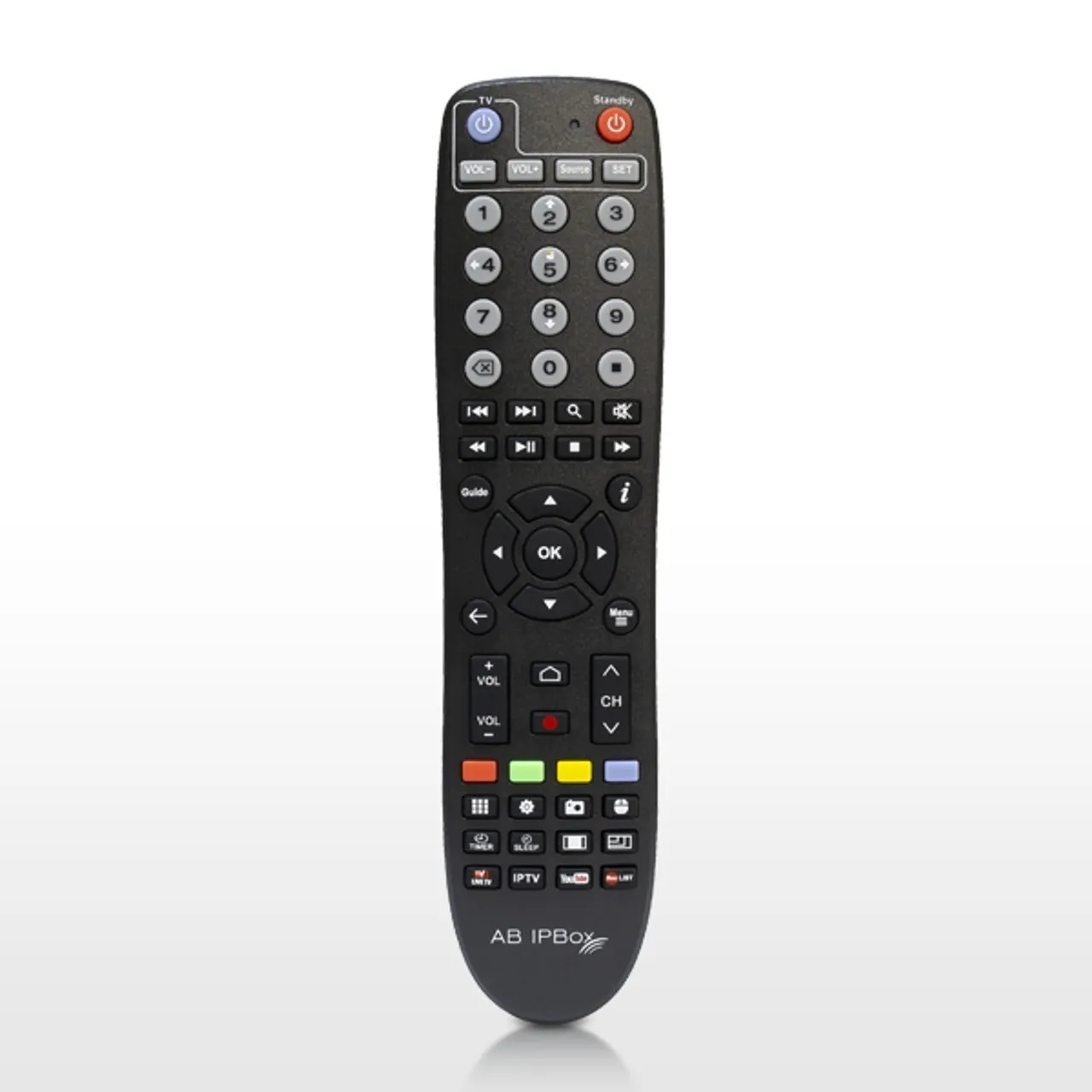

| Remote Control | |
| Pwer Supply EU/UK | |
| 2xAAA Batteries | |
| HDMI Lead | |
| User Manuals |
| Product Code | ABIPBOXONE |
| Manufacturer | AB IPBox |
| Condition | New |
| Weight | 3kg |
