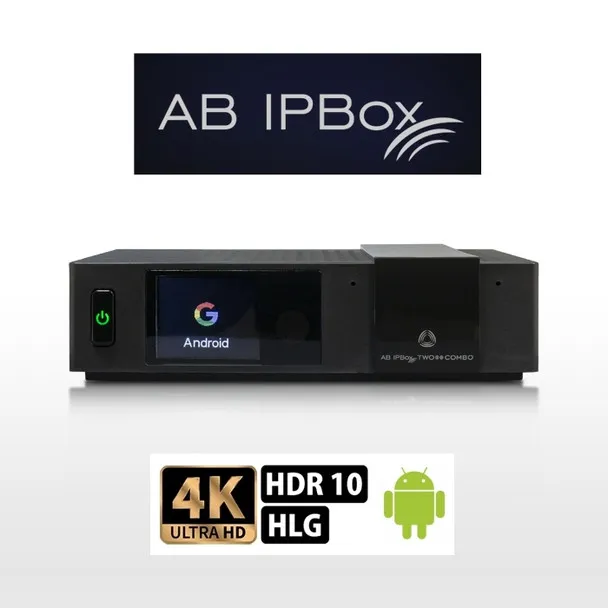

AB IP BOX TWO COMBO 4K UHD SATELLITE & TERRESTRIAL RECEIVER WITH ANDROID TV
4K UHD SATELLITE & TERRESTRIAL RECEIVER WITH ANDROID TV MULTIMEDIA CENTRE!
ANDROID OS TFT DISPLAY COMBO TUNERS DVB-S2X/T2/C BUILT-IN WIFI
4K UHD 2160p FRONT TFT DISPLAY PVR READY (USB/SD) CARD SLOT
The AB IPBox TWO COMBO is a 4K UHD combo satellite (DVB-S/S2X), terrestrial/cable (DVB-T/T2/C) receiver coupled with an ANDROID operating system providing the user with a full multimedia experience of both 4K satellite TV and terrestrial as well as the ability to receive content through your favourite Apps such as YouTube on a single device.
Highlights:
The AB IPBox TWO COMBO marks the beginning of a new generation of 4K receiver. With the IPBox TWO COMBO, you get a very powerful receiver with dual-band WiFi and a quad-core processor, a front LCD-TFT display, smartcard reader and several apps.
The AB IPBox TWO COMBO runs on the Android 8.0 operating system and brings some innovations, such as its powerful ARM Cortex-A53 processor. In addition, the IPBox TWO COMBO has a new and powerful Mali T450 GPU, as well as 2GB DDR4 RAM and working memory with 16GB eMMC 5.0.
The AB IPBox TWO COMBO receiver has numerous interfaces for uncomplicated integration and connection to existing devices (e.g. your home cinema system). External storage devices such as USB sticks and USB HDD's can be connected to IPBox TWO COMBO to either the USB 2.0 or USB 3.0 port. The IPBox TWO COMBO receiver also has an HDMI connection and a 10/100 Mbit Ethernet LAN connection.
RECORDING
You can save recordings to an external USB HDD. However, recording to a MicroSD card is a more elegant solution, as it fully replaces the functions of the external HDD and eliminates the visibility of an external device. The receiver can simultaneously record two programs, on the same transponder if both channels are broadcast via satellite, or a mix of satellite and terrestrial.
Calculation of microSD recording capacity:
BLUETOOTH REMOTE
The Bluetooth remote control contains all the necessary buttons, which are logically arranged.
TECHNICAL SPECIFICATION
| Operation system | |
| OS | Android 8.0 Oreo |
| System Resources | |
| CPU | ARM Cortex A53, Quad core 64bit |
| GPU | High-performance multi-core Mali T720 |
| Storage Memory | 16GB eMMC 5.0 |
| System Memory | 2 GByte, DDR4 SDRAM |
| MPEG Transport Stream A/V Decoding | |
| Transport Stream | ITU-T H.265/HEVC & H.264 |
| ISO/IEC 13818-2 MPEG-2 | |
| AVS&AVS+, VP6, VP8, VP9 | |
| Profile Level | ITU-T H.265 Main 10 Profile@L5.1 high-tier |
| MPEG-2 MP@HL | |
| Input Rate | Max. 160Mbit/s (H.265) |
| Video Format | 4:3, 16:9, Letter Box, Pan& Scan |
| Video Resolution | 10bit, Up to 3840 x 2160@ 60fps |
| HDR10 Support, HLG | |
| Audio Decoding | MPEG I& II,MP3,Dolby Digital Plus |
| AAC-LC,HE-AAC V1/V2 | |
| Audio Mode | Stereo/Mono/Left/Right/Exchange |
| Rear Panel | |
| Power Switch | Push button |
| DC Power Jack | 12Vdc / 2A |
| Smartcard slot | 1x |
| Tuner 1 | DVB-S2X |
| Tuner 2 | DVB-T/T2/C |
| RJ-45 Connector | 10/100Mbps |
| HDM I Connector | Version 2.0a, HDCP 2.2, HDCP1.4 |
| SPDIF | Optical |
| USB Sockets | 1x USB3.0 and 1x USB2.0 Host Interface |
| USB Memory Stick & HDD, HUB Support | |
| FAT, NTFS Support | |
| 5Vdc, 500mA Max. | |
| Side Panel | |
| Micro SD Card | 1x |
| On board | |
| Bluetooth Internal Antenna | Yes. 4.0 + EDR |
| Wifi Antenna Internal Antenna | IEEE 802. 11b/g/n/ac |
| 2.4GHz/5GHz Dual band(2T/2R) | |
| Tuner 1 DVB-S2X | |
| Input Connector | F-Type Female(Si-Labs SI2166) Support S2X |
| Frequency Range | 950M Hz to 2150M Hz |
| Signal Level | -25 to -70dBm |
| LNB Power & Polarisation | Vertical : +13.5V ± 0.5V Max 4500mA |
| 22KHz Tone | Horizontal : +18.5V ± 0.5V Max 500mA |
| Frequency : 22KHz ± 4KHz, 0.6Vp-±p0.2Vp-p | |
| Diseqc Control | Version 1.0, 1.2, USALS Compatible |
| Demodulation | QPSK & 8PSK |
| Input Symbol Rate | DVB-S : 1 ~ 55M bps / DVB-S2 : 1 ~ 45Mbps |
| Tuner 2 DVB-T/T2/C | |
| Antenna Input/Output Connector | IEC Female(Dual AVL6762 Demod) |
| Frequency Range | 52MHz to 866MHz |
| Signal Level | +10 dBm to -80 dBm |
| IF Frequency | Low IF 4 MHz to 8 MHz, 36 MHz & 44 MHz |
| Mode | DVB-T2/T/C, QPSK, 16QAM ~ 256QAM |
| Bandwidth | 6 MHz, 7 MHz, 8 MHz, 1.7MHz |
| Front Panel | |
| TFT LCD | 1.77 inch TFT LCD |
| Power LED | Red/Green Dual Color light emitting diode |
| Buttons | 1x Power Button |
| Microphone | 2x Microphone Holes |
| Power Supply | |
| Input Voltage | AC 90 ~ 250V, 50/60HZ |
| Output Voltage | 12V / 2A |
| Type | External AC to DC Adaptor |
| Power Consumption(Watt) | Stand-by Mode : Under 0.5W |
| Physical Dimension | |
| Size(WXDXH) | 170mm X 100mm X 46mm |
| Net Weight | 0.7 Kg |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -10 ~ 70 ℃ |
| Scope of Delivery | |
| AB IPBox TWO COMBO Set Top Box | |
| Remote Control | |
| Pwer Supply EU/UK | |
| 2xAAA Batteries | |
| HDMI Lead | |
| User Manuals |
| Product Code | ABIPBOXTWOST |
| Manufacturer | AB IPBox |
| Condition | New |
| Weight | 3kg |
