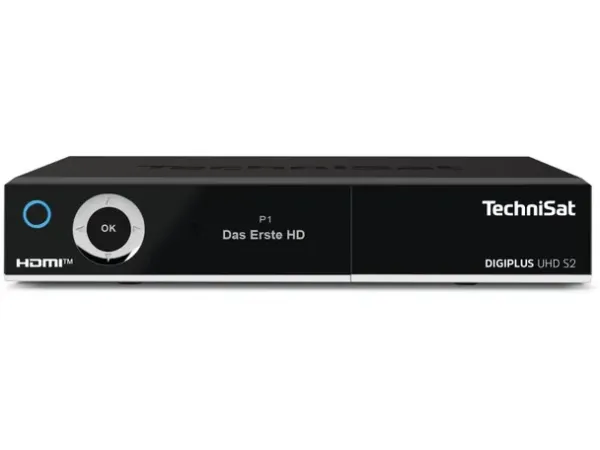

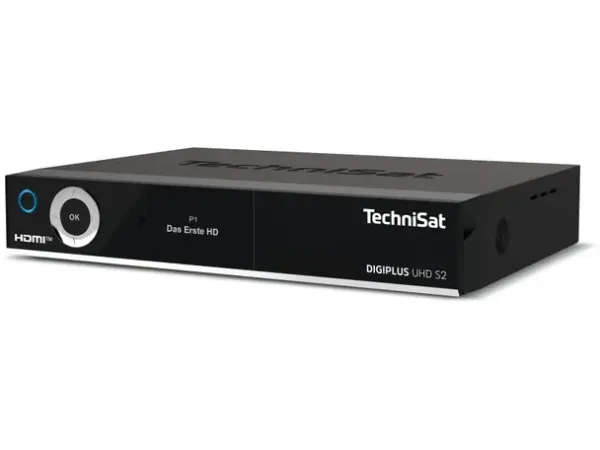

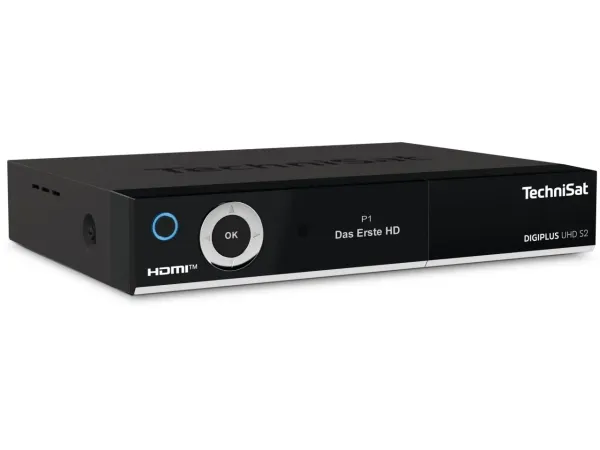

TechniSat DIGIPLUS UHD S2 OLED 4K UHD Twin Tuner Satellite Receiver

  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
TechniSat DIGIPLUS UHD S2 OLED 4K UHD Twin Tuner Satellite Receiver

Tap for gallery

£299.95


Product Information
Specification

NEW! 2ND EDITION WITH OLED FRONT DISPLAY

HIGHLY RECOMMENDED FLAGSHIP HD & 4K UHD SET TOP  BOX

TECHNISAT DIGIPLUS UHD S2 OLED 4K ULTRA HD TWIN TUNER RECEIVER

FULL FEATURED 4K UHD TWIN TUNER PVR READY SATELLITE RECEIVER

RECORD TO USB OR NAS & STREAM CHANNELS TO CONNECTED DEVICES

CINEMA READY

With the Technisat DIGIPLUS UHD S2 you can enjoy 4K content (as well as SH and HD), the DIGIPLUS UHD S2 is the perfect addition to your UHD TV set.

The satellite receiver has a DVB-S/S2 TwinTuner for simultaneous viewing and recording of two different programs. You can then store the recordings very flexibly on USB data device or over the home network on NAS storage.

The DIGIPLUS UHD S2 also plays UHD video files from the network or from USB. The receiver can be used in the network as a UPnP client and server and thus becomes a perfect multimedia center.

The DIGILPUS UHD S2 can stream live content to a multimedia device with the appropriate UPnP-capable media player such as a mobile device, smart TV, tablet, laptop etc.

Thanks to the TechniSat CONNECT app, you can easily control the DIGITPLUS UHD S2 not only at home, but also access the receiver at any time on the go to set new recordings.

KEY FEATURES:

  • Twin Tuner 4K Ultra HD Set Top Box
  • High Quality OLED Front Display
  • Second to none TECHNISAT video and audio quality
  • 4K UHD Upscaling
  • DVR Ready - Record to USB or NAS (Network Storage)
  • Record edit function
  • CI+ Slot for Pay-TV
  • Streams Live TV to your mobile device or Smart TV
  • Built-in Multimedia player
  • Set timer recordings while on the go
  • Integrated wireless LAN


UHD/4K Thanks to support for the latest standards (HDMI with 4K 50 / 60p / HDCP 2.2 / HEVC H.265), the receiver processes (if broadcasted) 4K satellite TV and passes the ultra-high-resolution images to a suitable UHD/4K TV set. The ISIO STC also plays UHD files from a network or USB3.0 connected device.


UHD/4K Upscaling With UHD/4K upscaling can enjoy various non-UHD content such high definition TV programmes and movies on Blu-ray or DVD, can be viewed with improved picture quality. With UHD upscaling the source material is processed and played out in in sharp UHD / 4K resolution, which approximates a UHD display for lower resolution content.


Easy Auto-Install Using your Technisat box for the first time requires a number of important settings storing specific to your location. Clear on-screen instructions from the Technisat easy installation wizard will guide you through an easy-to-understand set up procedure. You will be up and running in no time.


Twin Tuner This means that two progeammes can be recorded at the same time, i.e. one programme can be recorded and the other viewed and recorded. You can also watch two programmes in parallel (picture in picture).


DVR Ready USB/NAS Do not miss any more programmes and record your favourite films, TV programmes and music losslessly via USB such as USB hard drives and memory sticks. When integrated in to the home network recordings can also be saved directly to shared network storage (NAS) with this device. NAS stands for Network Adressed Storage and is becoming increasingly common at home which makes data readily available to a whole range of devices.


Common Interface CI+ This (common) interface is used in combination with a CI or CI+ module and corresponding SmartCard to enable access to encrypted programming such as Pay TV or Pay Radio. CI+ 1.3 compatible.


Perfect Recording Offers detection of broadcast time postponement in DVR mode. EPG permitting.


Pay-TV Ready This device enables you to receive encrypted content from a subscription based Pay TV provider.


PIP function The Picture in Picture (PIP) function enables the TV picture for one channel to be minimised and shown at the edge of the screen while another is watched on the main TV screen.


Universal Plug and Play (UPnP) This device can be integrated into a home network. In this way, different multimedia devices can be networked directly via UPnP/DLNA (e.g. PC, television, audio system).


Camping This device can be operated using both normal 110/230V mains and a 12V power supply, e.g. for a vehicle. Hence it is suitable for both home and mobile use.


Editing Function Recorded programmes can be edited later via handy cutting and editing tools (e.g. to remove advertising slots).


TV/Entertainment Control via Amazon Alexa You can operate TV/entertainment functions of this device with the Alexa voice control. For voice control of this device you also need:
- MyTechnisat App
- Amazon Alexa App
- Alexa voice control device


TechniSat CONNECT is the app that enables the uniform control of a large number of functions from one central app. The app can be customised with different application modules individually to your needs. CONNECT is available for iOS and Android mobile devices.


MyTechnisat MultiPlay App With the Android MyTechnisat MultiPlay App you can access all your films, music and photos in the entire home network from your tablet and play the media on all UPnP/DLNA compatible devices.


TechniMatic This free updating service from TechniSat keeps the software on your device up to date. As soon as enhancements or improvements to the operating software are available, the set carries out an automatic software update at the appropriate time (adjustable in the menu on the TV). This ensures a high level of future-security and a wider and improved range of functions.

English User Guide here

TECHNICAL SPECIFICATION



Display
Picture in picture (PIP)Yes (2x SD, 2x HD, 1x UHD and 1x HD,
 1x UHD and 1x SD, 1x SD and 1x HD)
Freeze frameYes
ZoomYes
UHD / 4K upscalingYes
SDYes
HDYes
UHD / 4KYes
2160pYes
1080pYes
1080iYes
720pYes
576pYes
576iYes

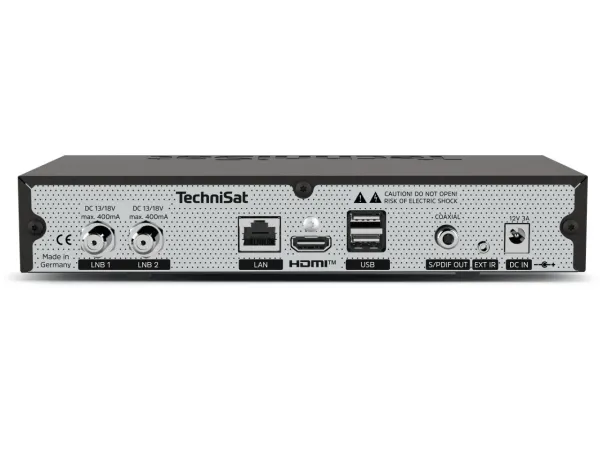

Connectivity
HDMI (out)1 (4K 50/60p / HDCP 2.2)
USB2
Common Interface Plus (CI+)1
Coaxial audio output (S/PDIF)1
IR extender jack (3.5mm)1
Ethernet 1Gbit/s (RJ-45)1
F socket SAT (in)2

LNB Control
Vertical14 V
Horizontal18 V
Band switch22 kHz
Current consumptionMax. 400 mA (short-circuit protection)
DiSEqC1.0 / 1.2 / SCR1 / SCR2
Ambient temperature5 … 35° C
Humidity10 … 75%

Operation/Comfort
Smart home clientYes
TV / Ent. Alexa voice controlYes
Teletext subtitlesYes
Media playerYes
Remote controlYes
Sleep timerYes
Program positions9999
Program memory favorites9999
TeletextYes
Teletext subtitlesYes
Auto standbyYes
Technisat CONNECT appYes
Hotel modeYes
Wake-up timer / AlarmYes
Selection of regional channelsYes
Hotel modeYes
Parental controlYes
Software updateYes
Quick startYes

Decoder
Video decoderMPEG-2 MP @ HL / ML, H.264 / MPEG-4 AVC
 H265 / HEVC
Audio decoderMPEG-1 & MPEG-2 Layer I, II, III

Display
TypeOLED

Decryption System
CI+Yes

Hotel Mode
Protected access to hotel modeYes
Customisable start screenYes
Lockable volumeYes
Menu lockingYes
Control panel lockYes
Integrated LED clockYes
Selectable start sourceYes
Selectable start channelYes

Internet Functions
HbbTV / Red ButtonYes
HTML 5 supportYes
ISIO internetYes
ISIO liveYes
VoD servicesYes
Internet speed testYes
Web browserYes
Home networkYes

Power Consumption
Standby LED0.4 W
Standby with active network conn.17.1 W

Recording Functions
DVR readyYes
DVR storage mediumvia USB / NAS
Multi-recordingYes
TimeshiftYes
Recording folder managementYes
Recording edit functionYes
Perfect recordingYes

Network & Communication
HTTPYes
DHCPYes
IPv4Yes
HTTPSYes
IGMPYes
IPv4Yes
RTPYes
TCP/IPYes
UDPYes
UPnPYes
1000Base-TYes

Other features
OSD languagesGerman, English, French, Greek, Italian
 Dutch, Polish, Portuguese, Russian, Spanish
 Swedish, Czech, Turkish, Hungarian

Streaming
UPnP rendererYes
UPnP clientYes
Live TV streamingYes
UPnP serverYes

Power Supply
Nominal voltage230 V
Frequency50 Hz
Mains adapterExternal, DC 12V/3A

Technisat CONNECT
ControlYes
SFIYes
Smart HomeYes
MULTI PLAYYes

Technisat Value-Added Services
AutoInstallYes
ISI-ModeYes
ISIPROYes
SFI+Yes
TechniMaticYes
TechniFamilyYes

Tuner
Tuner typeTwin Tuner
Satellite (DVB-S2)2
Single Cable Routing (SCR)SCR1 = EN50494, SCR2 = EN50607
Satellite radioYes
Reception onUHD (H.265/HEVC), HDTV (MPEG-4), SD-TV (MPEG-2)
TechniRouter readyYes
TechniSelect 12 readyYes
DVB-IP (multicast)1

Tuner - Satellite DVB-S2
Reception range950 … 2150 MHz
Viterbi rates1/2, 2/3, 3/4, 5/6, 7/8, (automatic adjustment)
DVB-SQPSK
Symbol rate DVB-S2 … 45 Mbaud
DVB-S28PSK QPSK
Symbol rate DVB-S210 … 31 Mbaud
FECRS, LDPC, BCH

Supported Formats & Codecs
Video-CodecsMPEG-4, MPEG-2, MPEG-1, H.264 (up to H.264 /
 AVC Level 4.2), H.265
Video-FormatsMP4, M4V, MKV, MOV, MPG, MTS, TS, TS4, VOB
 M2TS, AVI, ASF
Picture-FormatsJPEG, BMP, GIF, PNG
Audio-FormatsMP3, WAV, AAC, FLAC, M4A, MP2, DDAC3, AIFF

Wireless LAN
Integrated WiFiYes
2.4 GHzYes
5 GHzYes
WLAN802.11n a/b/g (2.4 GHz / 5GHz)

Characteristics
Weight (device)636 g
Weight (carton)1.35 Kg
Device (WxHxD)22.00 x 4.00 x 17.50 cm
Colourblack
Warranty2 years (registration required)
Made in GermanyYES!

Scope of delivery
Technisat DIGIPLUS UHD S2

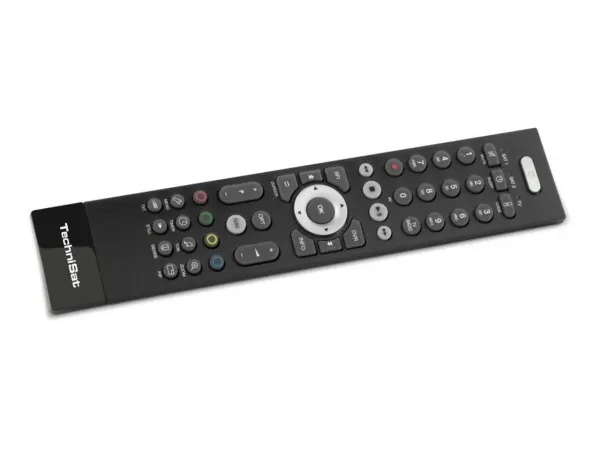

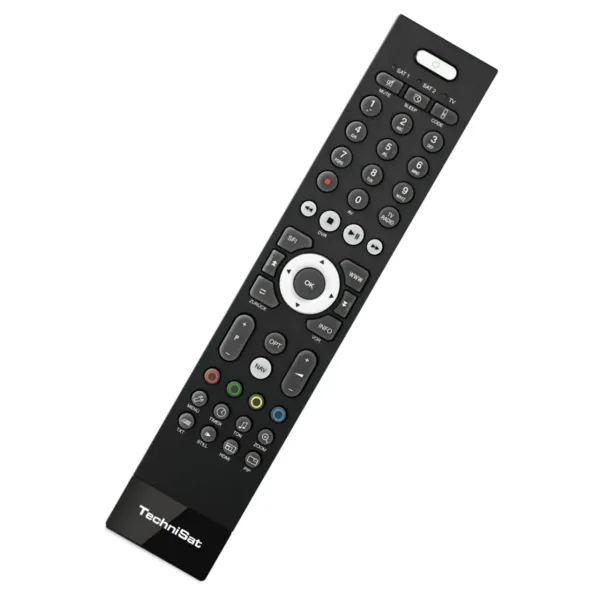

Technicontrol remote control
Power supply
4K HDMI cable
Operating instructions
Warranty card
Product CodeTECW60L914
ManufacturerTechniSat
ConditionNew
Weight3kg
